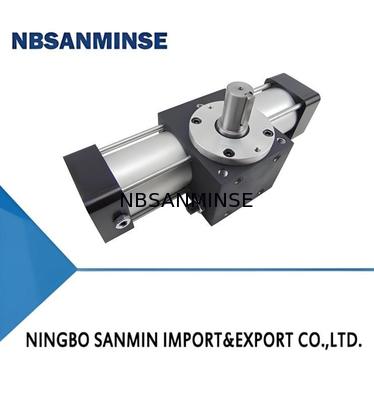

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily

Deskripsi
Tekanan bukti: 10 (batang) Sudut ayunan: 90.180 (derajat)
Sudut penyesuaian: ±5(derajat) Sudut bantalan: 20 (derajat)
Bahan: aluminium Kisaran Suhu Pengoperasian (℃): -25～+70
Menyoroti:

10 bar Proof Pressure Solenoid Valve

,

90-180 Degrees Swing Angle Air Valve

,

±5 Degrees Adjustment Angle Pneumatic Solenoid Valve

I. Features:
  1. Small volume, novel structure and good performance.
  2. Adopts gear-rack transmission, outputting large and small torques.
  3. No need for oil supply lubrication, no exhaust pollution.
  4. Equipped with an angle fine-tuning mechanism, enabling precise angle control.
  5. Magnetic switches can be installed, and the swing angle range can be adjusted arbitrarily.
  6. Equipped with an adjustable cushioning mechanism, no impact at the end of the swing stroke.
  7. Multiple installation forms, easy to install and widely applied.

II. Model

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 0

① Installation Form SD,FA,FB
② Cylinder Bore QGK-2 φ20. φ25. φ32. φ40
QGK-1 φ63,φ80,φ100,φ125
③ Swing Angle 90°,180°
④ Switch code model
J FD-21R
H FD-19RV
A SR1
⑤ Number of Switches  2 for standard products
⑥ Output Shaft Form T Single Shaft
T₂ Double Shaft

Note: Switch SR1 is only applicable to small-sized gear-rack swing cylinders with Φ20～Φ40. Switches FD-21R and SR401 are only applicable to medium-sized gear-rack swing cylinders with Φ63～Φ125.

1. Main Technical Parameters of Cylinder

Item Basic Type (QGK-1) Basic Type (QGK-1R) With Switch Type (QGK-2) With Switch Type (QGK-2R)
Model QGK-1 QGK-1R QGK-2 QGK-2R
Cylinder Bore (mm) φ63,φ80,φ100,φ125 φ20,φ25,φ32,φ40
Working Pressure Range (bar) 1～7 1～10
Proof Pressure (bar) 10  15
Swing Angle (degrees) 90,180
Adjustment Angle (degrees) ±5
Rated Torque (N·m) (at 5 bar) Φ63:34.3;Φ80:66.6;Φ100:120.5;Φ125:319 Φ20:2;Φ25:2.8;Φ32:3.5;Φ40:5.7
Operating Temperature Range (℃) -25～+70 (under non-freezing conditions)
Cushioning Mechanism Adjustable Cushioning on Both Sides Adjustable Cushioning on One Side
Cushioning Angle (degrees) 20  Φ20,Φ25,Φ32:35;Φ40:32
Lubrication {Non-lubricated (Lubricated Optional)

Note: To avoid impact caused by impact energy exceeding the absorption capacity of the cylinder cushioning device, please use a damper separately to absorb the impact energy.

2. Parameters of Magnetic Switch

Model (with 1.5m flexible cable) FD-21R FD-19RV
Operating Voltage Range (V) 5～240 DC/AC 5～240 DC/AC
Operating Current Range (mA) 100(max)
Maximum Contact Capacity 10W(max) 50W(max)
Operation Time
Recovery Time
Ⅳ. Outline and Installation Dimensions

1.QGK-1 Type Medium-sized Rack and Pinion Oscillating Cylinder

SD (Basic Type)

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 1

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 2

QGKG-1T (Single Output Shaft Standard Type)

Note: Swing Angle Adjustment Method: For 90° oscillating cylinders, adjust screws ① and ③. For 180° oscillating cylinders, adjust screws ① and ②.

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 3

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 4

QGK-1RT Single Output Shaft (with Switch Type)

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 5

QGK-1T₂ (Double Output Shafts)

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 6

  1. QGK-2 Type Small-sized Rack and Pinion Oscillating Cylinder

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 7

Outline Drawing of Single Output Shaft Type Small-sized Rack and Pinion Oscillating Cylinder

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 8

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 9

Outline Drawing of Double Output Shaft Type Small-sized Rack and Pinion Oscillating Cylinder

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 10

Note: In the table, L, L₁, and □N are the installation dimensions for double output shafts.

Dimension Table of Accessories for QGK-2 Type Small-sized Rack and Pinion Oscillating Cylinder

QGK Rotary Cylinder Magnetic switches can be installed swing angle range can be adjusted arbitrarily 11
