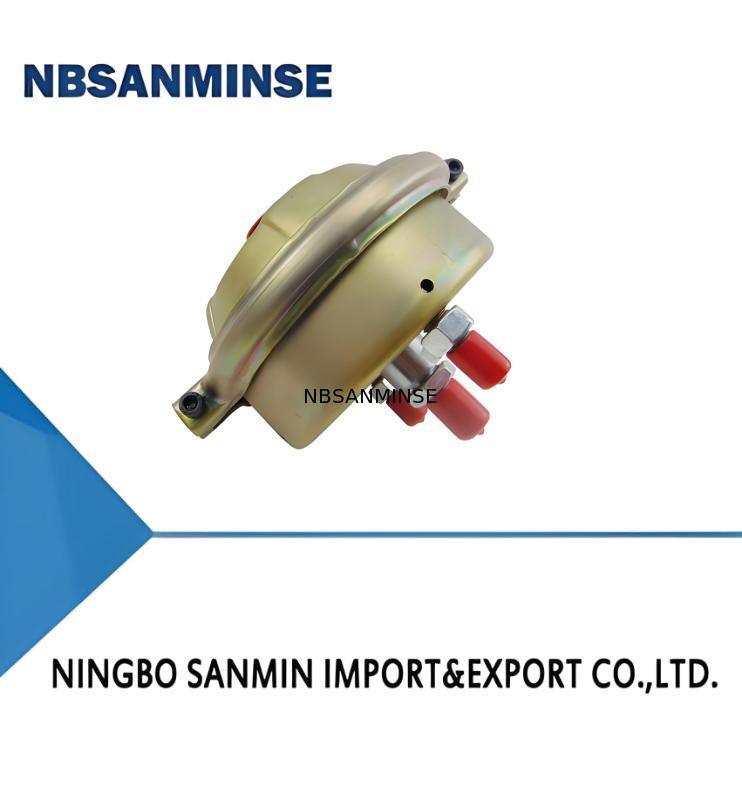

QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact

QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact
QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact

Gambar besar :  QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact

Detail produk:
Tempat asal: Tiongkok
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: QGV(D)
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact

Deskripsi
Pukulan Kerja: 45(mm) Tekanan kerja: 1-6.3(batang)
Tekanan bukti: 9,54(batang) Diameter batang piston: 32(mm)
Suhu Operasional: -25～+80(℃) Bahan: Baja
Menyoroti:

45mm Working Stroke Pneumatic Air Cylinder

,

1-6.3bar Working Pressure Guided Pneumatic Cylinder

,

9.54bar Proof Pressure Locking Cylinder

I. Features

1.It is an innovative product of our company, suitable for short-stroke occasions.

2.It has good sealing performance and is not easy to leak.

3.It has a simple and compact structure, small volume and light weight.

4.There are no wearing parts, and maintenance is convenient.

II. Graphical Symbols

QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact 0

III. Model

IV. Main Technical Parameters

Equivalent Bore Diameter(mm) 140  160
Piston Rod Diameter(mm) 32  32
Working Stroke(mm) 45  50
Working Pressure(bar) 1~6.3
Proof Pressure(bar) 9.54
Operating Temperature Range(℃) -25～+80 (under non-freezing conditions)
Working Medium Purified compressed air with oil mist
Cylinder Thrust (P=5bar)       Stroke Start 7716  9810
Stroke End 5648  7198
Spring Initial Reaction Force(N)   84.4  120
Spring Final Reaction Force(N) 180  230

V. Outline and Installation Dimensions

QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact 1

Dimension Table (Unit: mm)

QGV(D) Diaphragm Air Cylinder Pneumatic small Cylinder light and compact 2

Note: Maximum stroke = Working stroke ÷ 0.8
