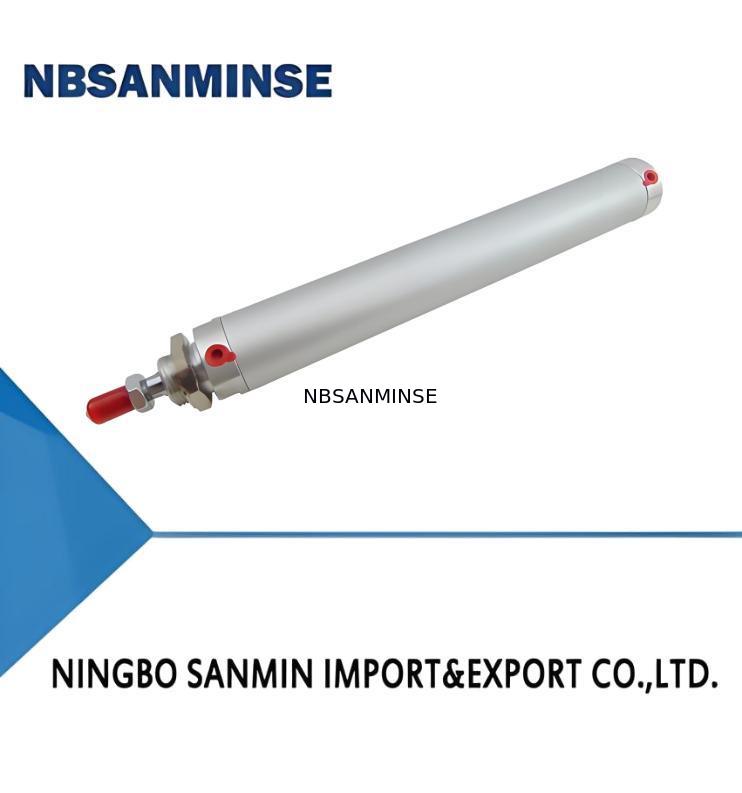

10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life

1.Parts are made of aluminum alloy, featuring light weight and small volume. The inner hole of the cylinder barrel is hard anodized, especially wear-resistant, with a long service life.

2.Installation dimensions comply with ISO (International Standard).

3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.

4.There are many varieties and specifications, and combined cylinders with switches and valves are available,

   saving pipe connection time and making maintenance and operation convenient.

II. Graphical Symbols and Appearance

III. Model

2. Main Technical Parameters of Switch

3. Main Technical Parameters of Valve

V. Outline and Installation Dimensions

1.The dimensions of cylinder accessories for the 10Y-2 series cylinders are the same as those for the 10Y-1 cylinders with Φ20～Φ50. Therefore, when calculating the installation dimensions of 10Y-2 cylinders, they can be calculated by referring to this table and the dimensions of cylinder accessories for the 10Y-1 series.

2.The SD, FA, and LS installation forms for the 10Y-2 (Standard Type) cylinders with bore sizes Φ20 and Φ25 comply with ISO.

3.Please refer to the installation forms and rod end connection forms of the 10Y-1 series for the installation forms and rod end connection forms of 10Y-2 with Φ20～Φ50.
