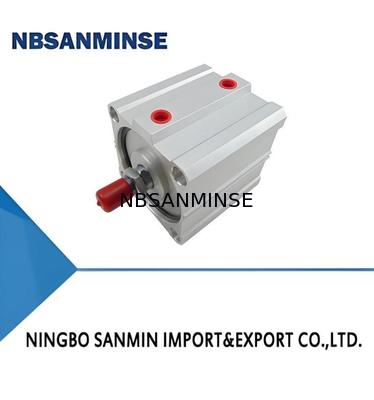

QGY-M Compact Air Cylinder Heavy Type Bore 20-125

QGY-M Compact Air Cylinder Heavy Type Bore 20-125
QGY-M Compact Air Cylinder Heavy Type Bore 20-125

Gambar besar :  QGY-M Compact Air Cylinder Heavy Type Bore 20-125

Detail produk:
Tempat asal: Tiongkok
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: QGY-M
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

QGY-M Compact Air Cylinder Heavy Type Bore 20-125

Deskripsi
Tekanan bukti: 15(batang) Tekanan kerja: 1~10(batang)
Bor yang Berlaku: Φ20~Φ100 Media Kerja: Tidak diperlukan
Suhu Operasional: -25 ～ +80 (℃) Bahan: aluminium
Menyoroti:

QGY-M Model Pneumatic Air Cylinder

,

1~10 Bar Working Pressure Air Cylinder

,

15 Bar Proof Pressure Pneumatic Cylinder

I. Features

  1. A newly developed product independently developed by absorbing and digesting advanced foreign technologies.
  2. Small axial dimension, with a compact, lightweight and attractive structure.
  3. Direct installation, no mounting accessories required.
  4. Oil-free (oil lubrication is also optional) lubrication, which avoids oil-gas pollution and eliminates the need for an oil mist lubricator

II. Graphic Symbols and Appearance

  • QGY-M (Standard Type)
  • QGY-M Compact Air Cylinder Heavy Type Bore 20-125 0
  • QGY (D)-M (Standard Type with Front Spring Single-Action)
  • QGY-M Compact Air Cylinder Heavy Type Bore 20-125 1
  • QGYR-M (Type with Switch)
  • QGY-M Compact Air Cylinder Heavy Type Bore 20-125 2
  • QGYR (D)-M (Type with Switch and Front Spring Single-Action)
  • QGY-M Compact Air Cylinder Heavy Type Bore 20-125 3

III. Model

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 4

IV. Main Technical Parameters

1. Main Technical Parameters of the Cylinder

model QGY-M,QGYR-M QGY(D)-M,QGYR(D)-M
Cylinder Bore (mm) 20,25,32,40,50,63,80,
100,125		 20  25  32  40  50  63  80  100  φ125
Pressure Resistance (bar) 15
Operating Pressure (bar) 1～10 2～10
Operating Temperature Range (℃) -25 ~ +80 (under non-freezing conditions)
Maximum Stroke (mm) Φ20~Φ25:30;
Φ32~φ125:50		 Φ20~Φ25:30;Φ32~Φ40:35;Φ50~Φ100:40;Φ125:50
Operating Medium Purified Dry Compressed Air
Lubrication Not Required (Lubrication Optional)
Spring Reaction Force at Maximum  Stroke (N) - Initial Reaction Force   14.5  22.8  32  51.8  72  83.2  115.5  128.7  488
(N) - Final Reaction Force   48.1  57  102  142.5  216  211.2  247.5  260.7  1442

2. Model and Main Technical Parameters of the Switch

Code Model  Suitable Cylinder Bore  Operating Voltage Range Operating Current Range Maximum Contact Capacity
V FD-72R Φ20~Φ100 5～240V DC/AC 100mA(max) 10W

V. Overall and Mounting Dimensions

  1. Outline Drawing of QGY-M Thin Cylinder

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 5

  1. Outline Drawing of QGY (D)-M Thin Cylinder with Front Spring Single-Action

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 6

缸径范围:Φ32~Φ125

QGY-M Compact Air Cylinder Heavy Type Bore 20-125 7

Label:

guided pneumatic cylinder,
