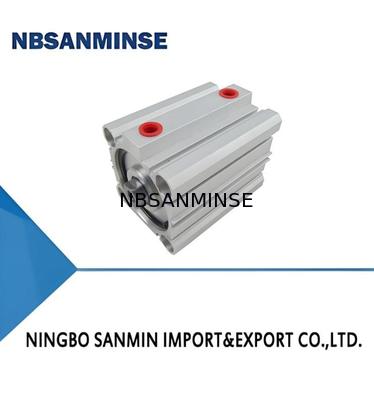

QGY Compact Air Cylinder heavy type Direct installation

QGY Compact Air Cylinder heavy type Direct installation
QGY Compact Air Cylinder heavy type Direct installation

Gambar besar :  QGY Compact Air Cylinder heavy type Direct installation

Detail produk:
Tempat asal: Tiongkok
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: QGY
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

QGY Compact Air Cylinder heavy type Direct installation

Deskripsi
Tekanan bukti: 15(batang) Tekanan kerja: 1-10 (batang)
Operasi Saat Ini: 100mA (maks) Media Kerja: Tidak diperlukan
Bahan: aluminium
Menyoroti:

QGY Model Pneumatic Air Cylinder

,

ISO 21287 Pneumatic Air Cylinder

,

2000mm Maximum Stroke Air Cylinder

I. Features

1.A new product independently developed by digesting and absorbing foreign advanced technologies.

2.Small axial dimension, compact, lightweight and beautiful structure.

3.Direct installation, no need for installation accessories.

4.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.

II. Graphical Symbols and Appearance

QGY Compact Air Cylinder heavy type Direct installation 0QGY (Standard Type)

QGY Compact Air Cylinder heavy type Direct installation 1QGY (D) (Front Spring Single-acting Standard Type)

QGY Compact Air Cylinder heavy type Direct installation 2QGYR (With Switch Type)

QGY Compact Air Cylinder heavy type Direct installation 3QGYR (D) (Front Spring Single-acting With Switch Type)

III. Model

QGY Compact Air Cylinder heavy type Direct installation 4

IV. Main Technical Parameters

Main Technical Parameters of Cylinder

Model QGY,QGYR QGY(D),QGYR(D)
Cylinder Bore (mm) 20,25,32,40,50,63,80,100,
125		 20  25  32  40  50  63  80  100  φ125
Proof Pressure (bar) 15
Working Pressure (bar) 1～10 2～10
Operating Temperature Range (℃) -25 ～ +80 (under non-freezing conditions)
Maximum Stroke (mm) Φ20~Φ25:30;
Φ32~Φ125:50		 Φ20~Φ25:30;Φ32~Φ40:35;Φ50~Φ100:40;φ125:50
Maximum Stroke (mm) Purified dry compressed air
Working Medium Not required (oil-lubricated is also available)
Spring for Maximum Stroke  Initial Reaction Force (N)   14.5  22.8  32  51.8  72  83.2  115.5  128.7  488
Final Reaction Force (N)   48.1  57  102  142.5  216  211.2  247.5  260.7  1442

Model and Main Technical Parameters of Switch

Code  Model Applicable Bore Operating Voltage Range Operating Current Range Maximum Contact Capacity
V FD-72R Φ20~Φ100 5～240V DC/AC 100mA(max) 10W

V. Outline and Installation Dimensions

Outline Drawing of QGY Thin Cylinder

QGY Compact Air Cylinder heavy type Direct installation 5

Bore Range: Φ20～Φ25

QGY Compact Air Cylinder heavy type Direct installation 6

Bore Range: Φ32～Φ125



Outline Drawing of QGY (D) Front Spring Single-acting Thin Cylinder

QGY Compact Air Cylinder heavy type Direct installation 7

Bore Range: Φ20～Φ25

QGY Compact Air Cylinder heavy type Direct installation 8

Bore Range: Φ32～Φ125

QGY Compact Air Cylinder heavy type Direct installation 9

Label:

guided pneumatic cylinder,

smc air cylinders,

smc locking cylinder
