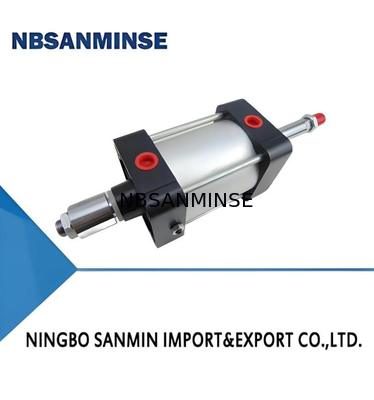

10A-5ST adjustable air cylinder Heavy type long service life

10A-5ST adjustable air cylinder Heavy type long service life
10A-5ST adjustable air cylinder Heavy type long service life

Gambar besar :  10A-5ST adjustable air cylinder Heavy type long service life

Detail produk:
Tempat asal: Tiongkok
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: 10A-5ST
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

10A-5ST adjustable air cylinder Heavy type long service life

Deskripsi
Tekanan bukti: 15bar Rentang Kecepatan Operasi: 50-700 mm/dtk
Tekanan Operasi: 1 ~ 10 bar Suhu Operasional: -25~80℃
Pelumasan: Tidak diperlukan Bahan: aluminium
Menyoroti:

1-10 bar Pneumatic Solenoid Valve

,

15 bar Solenoid Valve

,

50-700mm/s Air Control Valve

I.Features:

This product is developed based on the QGEW-2 series double piston rod cylinder. It is composed by extending the thread length at the piston rod end and installing an adjusting screw sleeve. Adjusting the stroke-adjusting screw sleeve can effectively adjust the extension stroke of the cylinder

II.Model:

10A-5ST adjustable air cylinder Heavy type long service life 0

SD:

Installation Form Name Code Installation Form Name Code
Horizontal Foot Bracket Type LA Front Flange Type FA
Axial Foot Bracket Type LB Rear Flange Type FB
Intermediate Hinge Type TC Intermediate Hinge Seat Type TCC
Basic Type SD

RY-T:

Instllation Form Name Code
Rad End Rod Fork Type RT-Y
Rod End Fork Rod Type RY-T



III. Main Technical Parameters:

Cylinder Bore Diameter D (mm) φ32 φ40 φ50 φ63 φ80 φ100 φ125 φ160 φ200
Maximum Stroke S (mm) 500  800  1600
Operating Pressure Range 1~10 bar
Proof Pressure 15 bar
Operating Speed Range 50-700mm/s
Operating Temperature Range -25-+80℃ (under non-freezing conditions)
Working Medium Purified compressed air
Lubrication Not required (Lubrication optional)
Cushion Adjustable cushion on both sides
Cushion Stroke (mm) 25  25  28

IV. Graphical Symbols, Outline and Installation Dimensions

Standard Type

SD (Basic Type)

10A-5ST adjustable air cylinder Heavy type long service life 1

Dimension Table:

10A-5ST adjustable air cylinder Heavy type long service life 2
