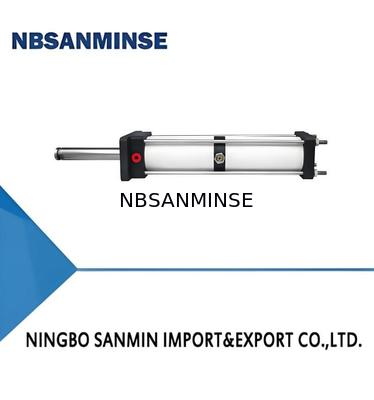

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Gambar besar :  QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Detail produk:
Tempat asal: Tiongkok
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: QGT
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Deskripsi
Sudut bantalan: 2~8 (derajat) Suhu Sedang dan Ambien: -5~+60(℃)
Pukulan S: 125(mm) Kerja Dampak Maksimum pada P=6bar: 31,6(≥N·m)
Bahan: aluminium Frekuensi Dampak pada P=6bar: 60 (kali/menit)
Menyoroti:

QGT Model Pneumatic Air Cylinder

,

2~8 Degrees Cushioning Angle Pneumatic Air Cylinder

,

-5~+60℃ Operating Temperature Pneumatic Air Cylinder

I. Features
  1. Utilizes compressed air to generate large impact force, suitable for multiple applications such as printing, blanking, stamping, and assembly.
  2. Simple structure, low air consumption, and large impact force.
II. Model
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 0
① Cylinder Model
② Mounting Type (See Next Page)
③ Cylinder Bore (See Below Table)
④ Stroke (See Below Table)
III. Main Technical Parameters of Cylinder
Cylinder Bore(mm) Φ63 Φ80 Φ100 Φ125
Working Pressure(bar) 2~8
Working Medium Dried compressed air with oilmist,filtered to remove water
Medium and Ambient Temperature(℃) -5~+60
Stroke S(mm) 125  160  200  250
Maximum Impact Work at P=6bar(≥N ·m) 31.6  69  143  294
Stroke Corresponding to Maximum Impact Work(mm) 60  80  110  132
Impact Frequency at P=6bar (times/min) 60  50  40  30

 Note: The maximum impact work is at 0.55 S of the stroke in the table.

IV. Graphic Symbols and Mounting Types

SD (Basic Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 1

J (Axial Foot Mount Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 2

F (Rear Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 3

FQ (Front Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 4

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 5
