JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type
JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type

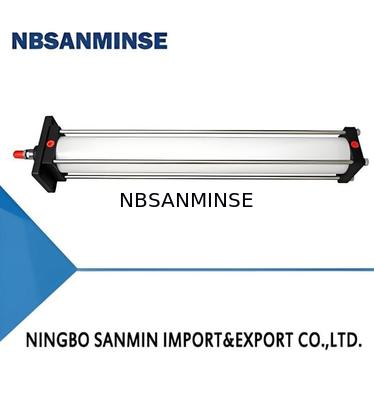

Gambar besar :  JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type

Detail produk:
Tempat asal: Tiongkok
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: JB
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type

Deskripsi
Tekanan Operasi: 1,5～8(batang) Kecepatan operasi: 100～500(mm/dtk)
Stroke maksimum: 600(Mm) Suhu Operasional: -25 ～ +80(℃)
Lubang silinder: 80(mm) Bahan: aluminium
Menyoroti:

JB Model Pneumatic Air Cylinder

,

1.5-8 Bar Operating Pressure Air Cylinder

,

100-500 mm/s Operating Speed Pneumatic Cylinder

I. Features

  1. Meet the JB1444～1448-74 standards and are widely used in the metallurgical industry at present.
  2. Complete in varieties and specifications, with a large number of installation accessories and connection accessories, suitable for different needs of users

II. Model

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type 0

III. Main Technical Parameters

Cylinder Bore(mm) 80  100  125  160  180  200  250  320  400
Maximum Stroke(mm) 600  800  1000  1250  1600
Working Medium Compressed air that has been purified and contains oil mist
Operating Temperature Range(℃) -25～+80(under non-freezing conditions)
Operating Pressure Range (bar) 1.5～8
Operating Speed Range(mm/s) 100～500

IV. Graphical Symbols and Outline Dimensions

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type 1

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type 2

V. Dimensions of Installation and Connection Accessories

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type 3

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type 4

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type 5

JB Pneumatic Air Cylinder JB1444～1448-74 standards Widely used in the metallurgical industry Heavy Type 6
