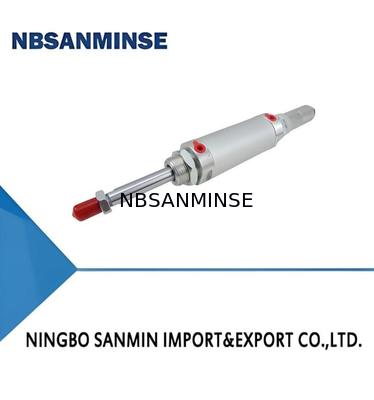

QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output

QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output
QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output

Gambar besar :  QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output

Detail produk:
Tempat asal: Tiongkok
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: QGEW-1
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output

Deskripsi
Tekanan bukti: 15 (batang) Tipe Bantalan: bantal bantal
Pukulan Minimal: 37(mm) Tekanan Operasi: 1～10(batang)
Kecepatan operasi: 50～700 (mm/dtk) Bahan: aluminium
Menyoroti:

QGEW-1 Model Pneumatic Air Cylinder

,

15 Bar Proof Pressure Air Cylinder

,

Cushion Pad Cushioning Pneumatic Cylinder

I. Features

  1. It is a derivative series of the imported 10Y-2 series cylinders, featuring the characteristics of the 10Y-2 series, and most parts are interchangeable.
  2. It uses oil-free (or oil-lubricated) lubrication, avoiding oil-gas contamination, and the oil mist lubricator can be omitted.
  3. It can output force from both ends, and the cylinder stroke can also be adjusted by installing a limit ring at one end.
II. Graphical Symbols
Standard Type
QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output 0
Type with Switch
QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output 1
III. Model
Standard Type
QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output 2
Type with Switch
QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output 3
① Cylinder Model See Cylinder Performance Table
②  Installation Form
③  Cylinder Bore See Cylinder Performance Table
④  Cylinder Stroke See Cylinder Performance Table
⑤  Switch Model See Switch Performance Table
Code K H
Name FD-03R FD-13RV
⑥ Number of Switches
⑦  Rod End Connection Accessory
⑧ Number of Connection Accessories

IV. Main Technical Parameters


Item Standard Type Type with Switch
Model QGEW-1 QGEW-1R
Cylinder Bore (mm) Φ20,Φ25,Φ32,Φ40
Maximum Stroke (mm) Φ20:300;Φ25:400;Φ32:500;Φ40:600
Minimum Stroke (mm)  No Restriction 37
Operating Pressure Range (bar) 1～10
Proof Pressure (bar) 15
Operating Speed Range (mm/s) 50～700
Operating Temperature Range (℃) -25 ～ +80 (under non-freezing conditions)
Operating Medium Dry and Clean Compressed Air
Cushioning Type Cushion Pad
Lubrication Not Required (Oil-Lubricated Optional)

Note: For the main technical parameters of the switch, refer to the relevant section of the 10Y-1 series cylinders.
