Rumah ProdukKatup Solenoid KuninganElemen penyegelan Tiga Handle Liquid Level Gauge Untuk D1 1/2 " 3/4" Tubuh katup

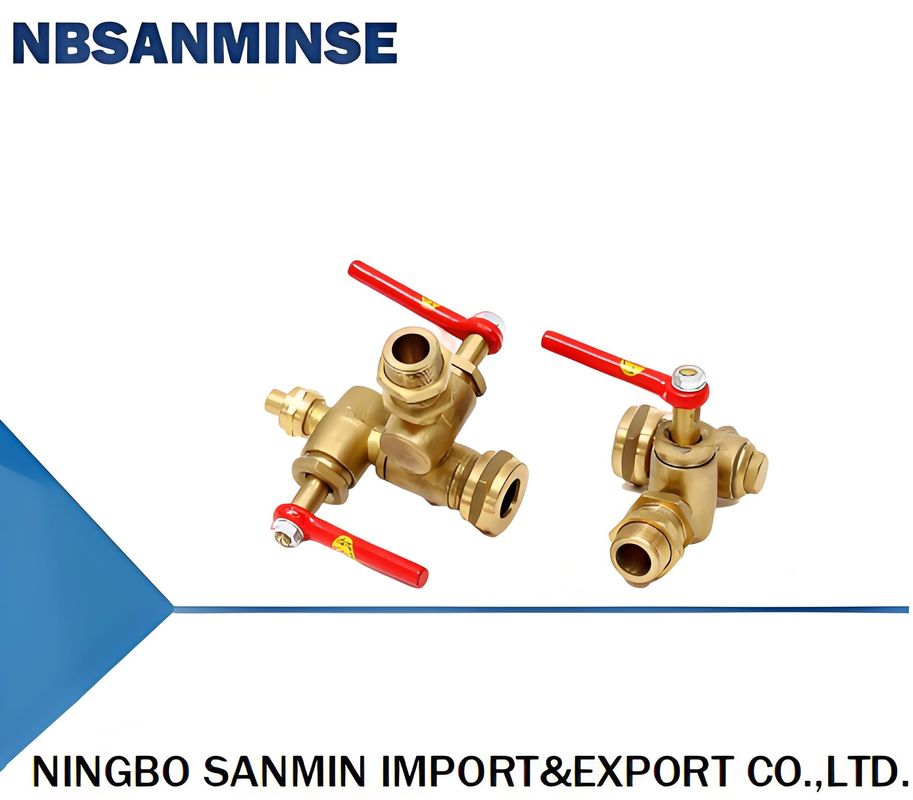

Sealing Element Three Handle Liquid Level Gauge For D1 1/2" 3/4" Valve Body

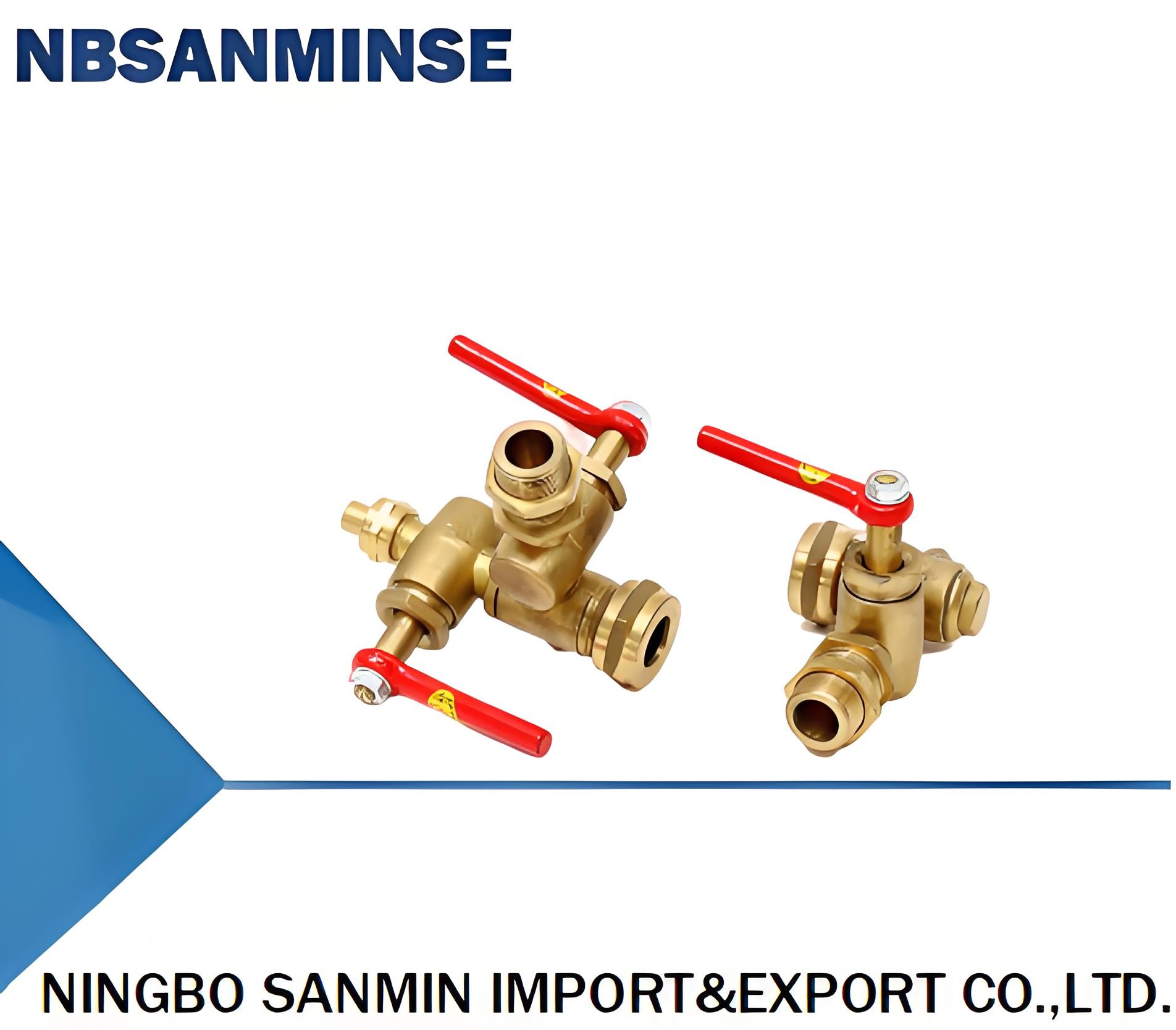

Sealing Element Three Handle Liquid Level Gauge For D1 1/2" 3/4" Valve Body

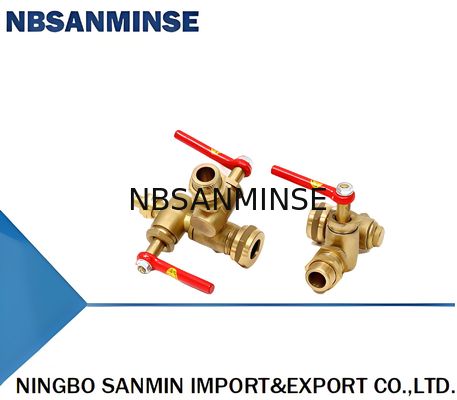

Elemen penyegelan Tiga Handle Liquid Level Gauge Untuk D1 1/2 Sealing Element Three Handle Liquid Level Gauge For D1 1/2" 3/4" Valve Body
Hubungi sekarang

Elemen penyegelan Tiga Handle Liquid Level Gauge Untuk D1 1/2 " 3/4" Tubuh katup

Tempat asal: Cina Nama merek: NBSANMINSE
Nomor model: TL103-15 TL103-20

Informasi Detail
Kode: TL103-15 TL103-20 Ukuran （mm）: D1 1/2 "3/4"
Nama Bagian: pegangan elemen penyegelan tubuh katup Bahan: ptfe kuningan
Tekanan nominal: 0,6Mpa Tekanan Uji Kekuatan: 1.0MPa
Tekanan uji segel: 0,6Mpa Suhu Operasi: ≤200℃
Media kerja: air, uap, minyak
Menyoroti:

D1 1/2 ̊ Pengukur Tingkat Cairan

,

Elemen penyegelan pengukur tingkat cairan

,

Pengukur Tingkat Cairan Tiga Pegang

Deskripsi Produk

This level gauge (also known as a water level gauge) is suitable for water, steam, and reservoirs with a working temperature t ≤ 200 ℃, and is used to indicate the level of liquid through a glass tube. 103 X29F-6T type code: 103 X29F-6T type (three handles/pair) water level gauge main parts material part name material valve body brass seal polytetrafluoroethylene (plastic king) handle forged steel main technical parameters nominal pressure PN0.6MPa strength test pressure 1.0 sealing test pressure 0.6 working temperature ≤ 200 ℃ working medium: water, steam, oil

Elemen penyegelan Tiga Handle Liquid Level Gauge Untuk D1 1/2 " 3/4" Tubuh katup 0

code size(mm) Part name material
  D1 D2 L1 L2 valve body brass
TL103-15 1/2" 14 87 25 Sealing element PTFE
TL103-20 3/4" 19 95 30 handle forged steel
Nominal pressure 0.6Mpa
strength test pressure 1.0Mpa
Seal test pressure 0.6Mpa
operation temperature ≤200℃
Working medium Water, steam, oil
