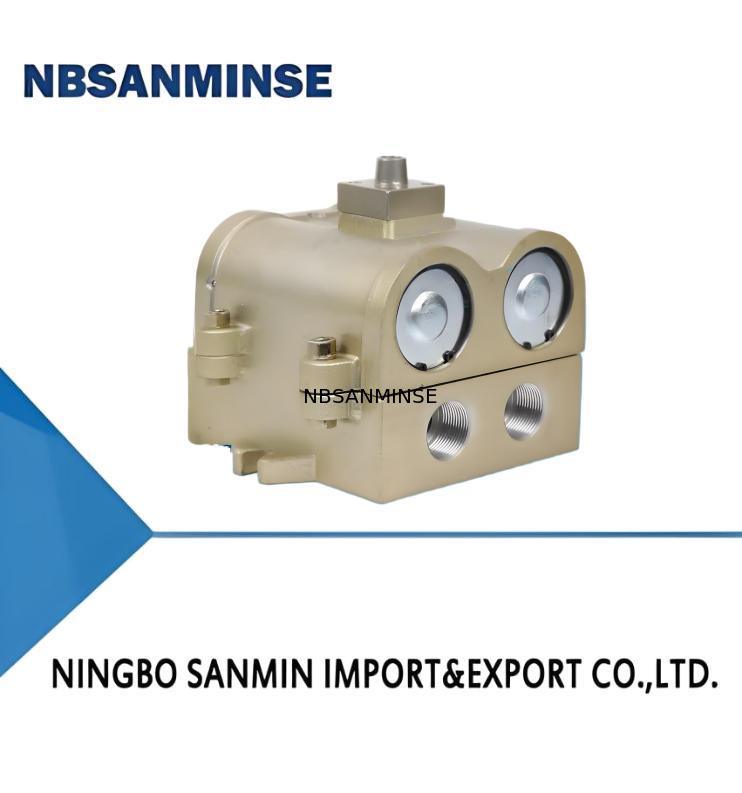

K25J-P Series 5/2 way solenoid valves

K25J-P Series 5/2 way solenoid valves
K25J-P Series 5/2 way solenoid valves

Gambar besar :  K25J-P Series 5/2 way solenoid valves

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K25J-P
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K25J-P Series 5/2 way solenoid valves

Deskripsi
Kehidupan Kerja (Jutaan kali): ≥150 Kontrol Tekanan (Mpa): ≥0,2
Suhu Sekitar (℃): -5 - 50 Tingkat Kebocoran (ml/mnt): ≤10
Nilai Aliran (m³/h): 2.5
Menyoroti:

5/2 way solenoid valve K25J-P

,

pneumatic solenoid valve with warranty

,

K25J-P series solenoid valve

Features:
The K25J-P series two position five way globe directional valve has
complete performance and a reasonable structure. Cut off structure,
strong dust resistance, and reliable operation.
 Order Code:
K25J-P Series 5/2 way solenoid valves 0
① Medium: Air
② Circuit Form: 2/5 Way
③ Valve Body Form: Poppet Type; Nominal Diameter: φ6, φ8, φ10, φ15, φ20, φ25
④ Control Form: D Single Electric Control, K Single Pneumatic Control; D2 Double Electric Control, K2 Double Pneumatic Control
Symbols:
K25J-P Series 5/2 way solenoid valves 1
K25J-P Series 5/2 way solenoid valves 2
K25J-P Series 5/2 way solenoid valves 3
Item Type K25JD-6
K25JK-6		 K25JD-8
K25JK-8		 K25JD-10
K25JK-10		 K25JD-15
K25JK-15		 K25JD-20
K25JK-20		 K25JD-25
K25JK-25
Nominal Diameter(Dia)
6  8   10  15  20  25
Medium/Ambient Temperature(℃)
-55
Working Pressure Range(Mpa)
0.15-0.8
Leakage Rate (ml/min)
≤10 ≤10  ≤25 ≤25 ≤50 ≤50
Direction Diverting Time (sec)
≤0.06 ≤0.06  ≤0.08 ≤0.08 ≤0.12 ≤0.12
Max Switch-over Frequency(Hz)
≥10 ≥10  ≥8 ≥8 ≥4 ≥4
Effective Sectional Area S(mm²)
≥10 ≥20  ≥35 ≥60 ≥120 ≥190
Rated  Flow(m³/h)
2.5  5   7  10  20  30
Working Voltage (V)
multicolumn{6}c}Electric Control:AC220,110,36;DC48,
24,12(Voltage Fluctuation Allowance:+10%-5%)}
Work Life(Million times)
≥150
Control Pressue(Mpa)
≥0.2

Label:

katup udara pneumatik,

5/2 way solenoid valve K25J-P,

pneumatic solenoid valve with warranty
