K24J-W Series poppet valves 4/2-way

K24J-W Series poppet valves 4/2-way
K24J-W Series poppet valves 4/2-way

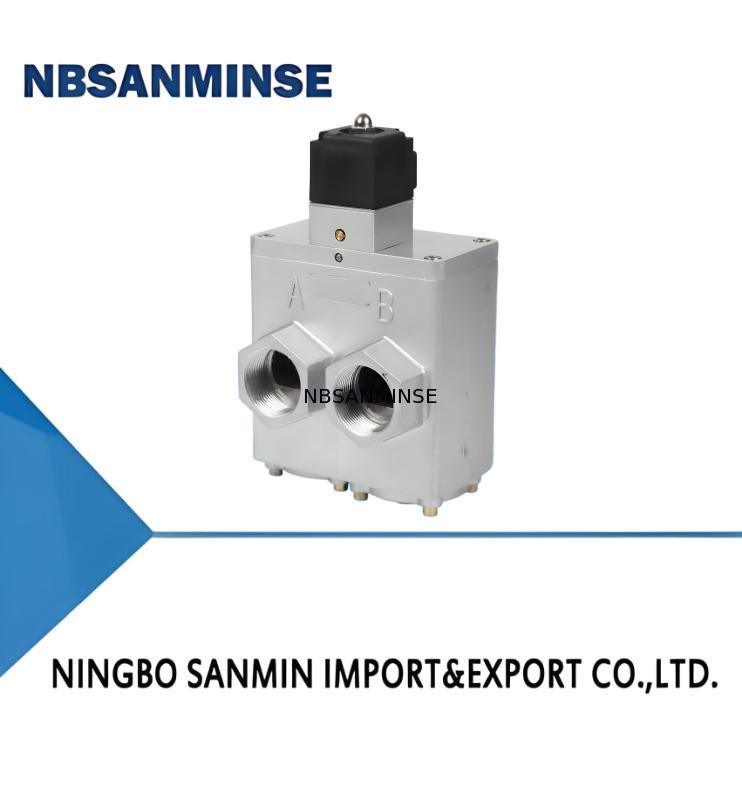

Gambar besar :  K24J-W Series poppet valves 4/2-way

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K24J-W
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K24J-W Series poppet valves 4/2-way

Deskripsi
Laju aliran: 40 Tingkat kebocoran (cm³/mnt): ≤300
Suhu kerja (℃): -5 - 50 Tegangan (v): AC: 380, 220, 110, 36;
Tekanan Kerja (MPA): 0,2 - 0,8
Menyoroti:

K24J-W poppet solenoid valve

,

4/2-way pneumatic valve

,

solenoid valve with warranty

Features:
K24J-Wseries is a Four-posiion two-way pipe connection cut off direc-
tion. Reasonable, easy to move and repair, especially suitable for harsh
working conditions. Separate control and pneumatic control.
Symbols:
K24J-W Series poppet valves 4/2-way 0
Order Code:
K24J-W Series poppet valves 4/2-way 1
① Medium: Air
② 2/4 Way
③ Poppet Type
④ D Single Electric Control
⑤ Nominal Diameter
⑥ Company Code: W or WHS
⑦ Rated Voltage: AC: 380V/220V/110V/36V; DC: 220V, 110V, 24V
K24J-W Series poppet valves 4/2-way 2
Specification:
Item Type K24J-32W K24J-40W
Flow rate
40  50
Effective sectional area S value(mm²)
300  400
Leakage rate  (cm³/min)
≤300 ≤300
Direction diverting time (sec)
≤0.15 ≤0.15
Switch-over frequency (Hz)
≥3 ≥3
Working pressure(Mpa)
0.2-0.8 0.2-0.8
Voltage(V)
AC:380,220,110,36;DC:220,110,24 AC:380,220,110,36;DC:220,110,24
Working Temp(℃)
-5-50 -5-50

Label:

katup udara pneumatik,

K24J-W poppet solenoid valve,

4/2-way pneumatic valve

Rincian kontak
Ningbo Sanmin Import And Export Co.,Ltd.

Kontak Person: Ina Chen

Tel: 0086-15168536055

Faks: 86-574-88915660
