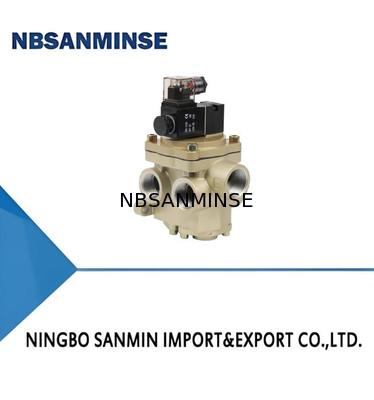

K25J-WHSX Series poppet valves 5/2-way

K25J-WHSX Series poppet valves 5/2-way
K25J-WHSX Series poppet valves 5/2-way K25J-WHSX Series poppet valves 5/2-way

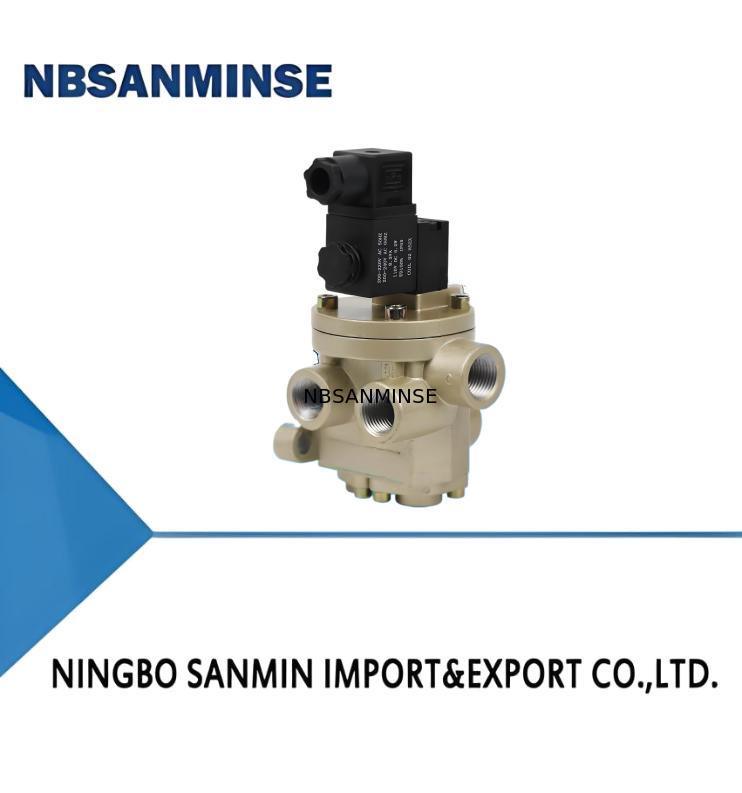

Gambar besar :  K25J-WHSX Series poppet valves 5/2-way

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K25J-WHSX
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K25J-WHSX Series poppet valves 5/2-way

Deskripsi
Nilai Tegangan: DC 24V Menahan arus: 0.32
Kekuatan: 7.7(L) Suhu kerja.: -5 - 50(℃)
Tekanan kerja: 0,2 - 0,8(Mpa)
Menyoroti:

5/2-way pneumatic poppet valve

,

K25J-WHSX solenoid valve

,

industrial pneumatic solenoid valve

Features:
K25J-W series is a Five-position two-way pipe connection cut-off direction.
Reasonable, easy to move and repair, especially suitable for harsh working
conditions. Separate control and pneumatic control.
Order Code:
K25J-WHSX Series poppet valves 5/2-way 0
① Medium: Air
② Circuit Form: 2/5 Way
③ Valve Body Form: Poppet Type
④ Control Form: D Single Electric Control, Electric Control
⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2
⑥ Product Model: WHSJ
⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V
Symbols:
 K25J-WHSX Series poppet valves 5/2-way 1
K25J-WHSX Series poppet valves 5/2-way 2

Outlook Dimension

Type Nominal Dia Threads G(Imperial) B C D E F φG R M
K25J-8W 8  G1/4 95  94  45  32  31  φ9.0 43.5  160
K25J-10W 10  G3/8 95  94  45  32  31  φ9.0 43.5  160
K25J-15W 15  G1/2 95  94  45  32  31  φ9.0 43.5  160
K25J-20W 20  G3/4 127  124  52  47  52  φ10.5 58  195
K25J-25W 25  G1 127  124  52  47  52  φ10.5 58  195
K25J-32W 32  G1-1/4 155  220  67  55  111  φ11 80  215
K25J-40W 40  G1-1/2 155  220  67  55  111  φ11 80  215

Specification

K25J-WHSX Series poppet valves 5/2-way 3

AC Voltage

Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29  0.25  0.27  0.14  0.12  0.13
Holding Current 0.15  0.12  0.15  0.08  0.06  0.07
PowerConsumption  (W) 8  7  9  8  7  9

DC Voltage

Valve Type K25JD-W
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7




Label:

katup udara pneumatik,

5/2-way pneumatic poppet valve,

K25J-WHSX solenoid valve
