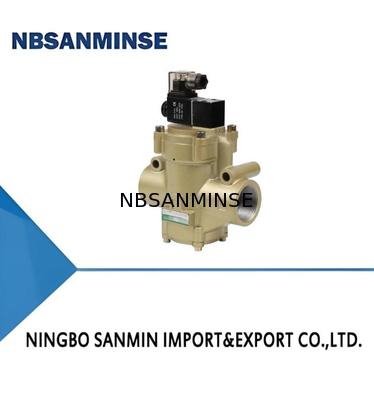

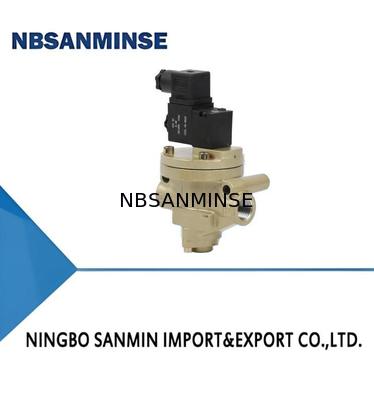

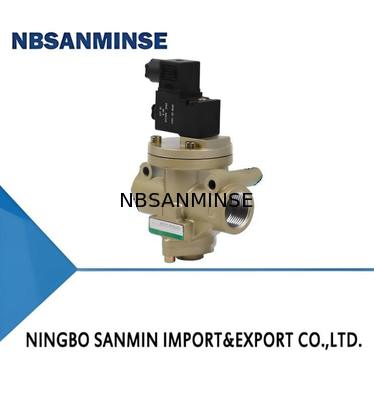

K22J-WHSX Series poppet valves 2/2-way

K22J-WHSX Series poppet valves 2/2-way
K22J-WHSX Series poppet valves 2/2-way K22J-WHSX Series poppet valves 2/2-way K22J-WHSX Series poppet valves 2/2-way

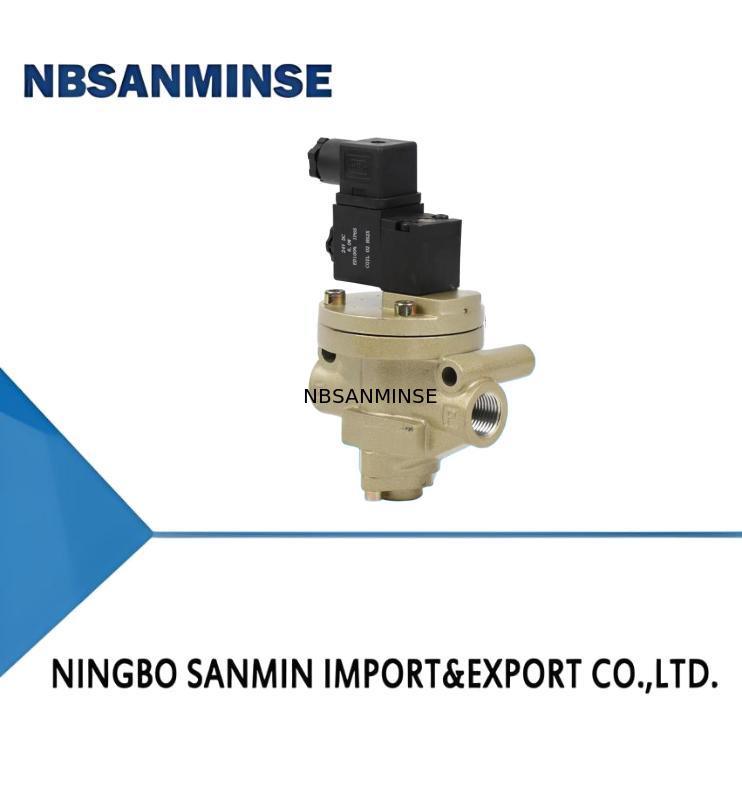

Gambar besar :  K22J-WHSX Series poppet valves 2/2-way

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K22J-WHSX
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K22J-WHSX Series poppet valves 2/2-way

Deskripsi
Nilai Tegangan: DC 24V Menahan arus: 0.32
Kekuatan: 7.7(L) Suhu kerja.: -5~50(℃)
Tekanan kerja: 0,2 - 0,8(Mpa)
Menyoroti:

K22J-WHSX poppet solenoid valve

,

2/2-way pneumatic solenoid valve

,

poppet valve with warranty

Features:
K22J-W series is a two-position two-way pipe connection cut-off direction.
Reasonable, easy to move and repair, especially suitable for harsh working conditions.
Separate control and pneumatic control.
Order Code:
K22J-WHSX Series poppet valves 2/2-way 0
① Medium: Air
② Circuit Form: 2/2 Way
③ Valve Body Form: Poppet Type
④ Control Form: D Single Electric Control, Electric Control
⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2, 50 G2
⑥ Product Model: WHSX
⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V
Symbols:
K22J-WHSX Series poppet valves 2/2-way 1
K22J-WHSX Series poppet valves 2/2-way 2
Outlook Dimension:
Type Nominal Dia Threads(Imperial G)   B C D   φG M N H
K22J-8W 8  G1/4   89  78  73  φ8.5 39  160  38
K22J-10W 10  G3/8   89  78  73  φ8.5 39  160  38
K22J-15W 15  G1/2   89  78  73  φ8.5 39  160  38
K22J-20W 20  G3/4 113  78  82  φ8.5 39  175  52
K22J-25W 25  G1 113  78  82  φ8.5 39  175  52
K22J-32W 32  G1-1/4 165  91  118  φ13 59  195  75
K22J-40W 40  G1-1/2 165  91  118  φ13 59  195  75
K22J-50W 50  G2 165  91  118  φ13 59  195  75
Specification:
K22J-WHSX Series poppet valves 2/2-way 3
AC voltage:
Valve Type K22JD-W K22JD-W K22JD-W K22JD-W K22JD-W K22JD-W
Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29  0.25  0.27  0.14  0.12  0.13
Holding Current 0.15  0.12  0.15  0.08  0.06  0.07
Power Consumption (W) 8  7  9  8  7  9
DC voltage:
Valve Type K22JD-W
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7

Label:

katup udara pneumatik,

K22J-WHSX poppet solenoid valve,

2/2-way pneumatic solenoid valve
