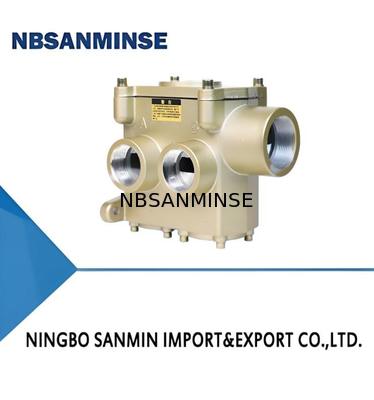

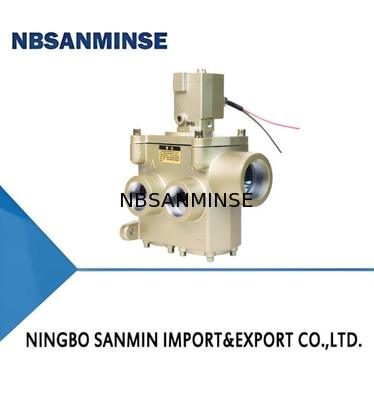

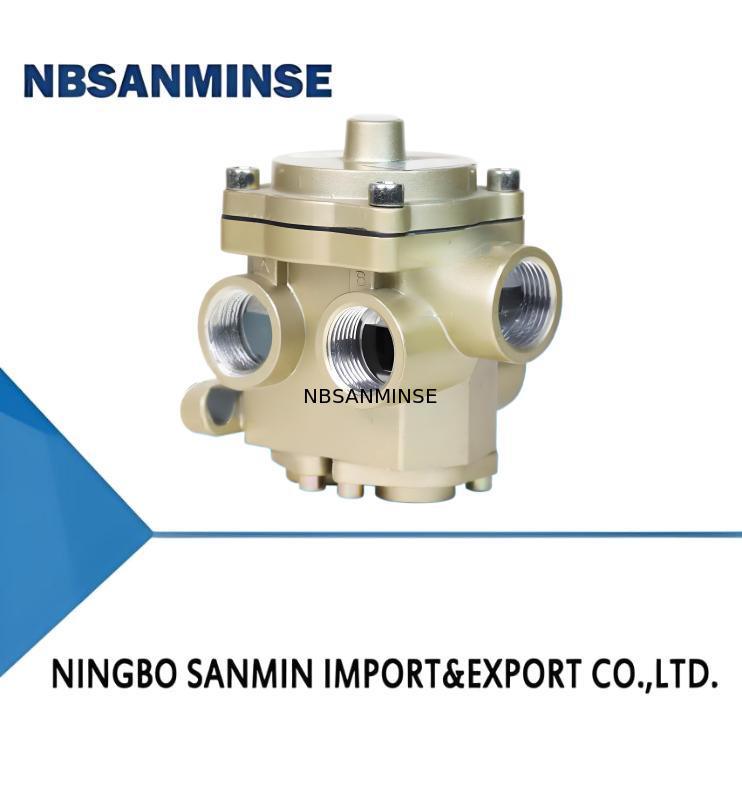

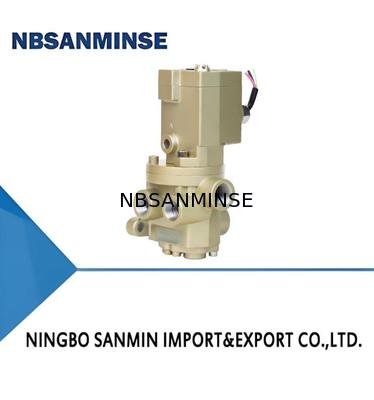

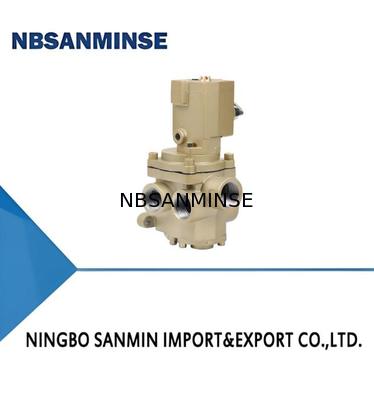

K25J-WHS Series poppet valves 5/2-way

K25J-WHS Series poppet valves 5/2-way
K25J-WHS Series poppet valves 5/2-way K25J-WHS Series poppet valves 5/2-way K25J-WHS Series poppet valves 5/2-way K25J-WHS Series poppet valves 5/2-way K25J-WHS Series poppet valves 5/2-way

Gambar besar :  K25J-WHS Series poppet valves 5/2-way

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K25J-WHS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K25J-WHS Series poppet valves 5/2-way

Deskripsi
Nilai Tegangan: DC 24V Menahan arus: 0.32
Kekuatan: 7.7(L) Suhu kerja.: -5~50(℃)
Tekanan kerja: 0,2 - 0,8(Mpa)
Menyoroti:

5/2-way pneumatic solenoid valve

,

K25J-WHS poppet valve

,

solenoid valve with poppet design

Features:
K25J-W series is a Five-position two-way pipe connection cut-off
direction. Reasonable, easy to move and repair, especially
suitablefor harsh working conditions. Separate control and pneu-
matic control.
Order Code:
K25J-WHS Series poppet valves 5/2-way 0
① Medium: Air
② Circuit Form: 2/5 Way
③ Valve Body Form: Poppet Type
④ D Single Electric Control with K Pneumatic Control
⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2, 50 G2
⑥ Product Model: ZHS
⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V
Symbols:
K25J-WHS Series poppet valves 5/2-way 1
K25J-WHS Series poppet valves 5/2-way 2
Type Nominal Dia Threads (Imperial G) A B C D E F L φG R
K25J-8W 8  G1/4 160  94  94  45  32  31  100  φ9 43.5
K25J-10W 10  G3/8 160  94  94  45  32  31  100  φ9 43.5
K25J-15W 15  G1/2 160  94  94  45  32  31  100  φ9 43.5
K25J-20W 20  G3/4 220  127  124  52  47  52  132  φ10.5 52
K25J-25W 25  G1 220  127  124  52  47  52  132  φ10.5 52
K25J-32W 32  G1-1/4 280  155  220  67  55  111  187  φ11 80
K25J-40W 40  G1-1/2 280  155  220  67  55  111  187  φ11 80
K25J-50W 50  G2 280  155  220  67  55  111  187  φ11 80

K25J-WHS Series poppet valves 5/2-way 3
Valve Type K25JD-W K25JD-W K25JD-W K25JD-W K25JD-W K25JD-W
Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29  0.25  0.27  0.14  0.12  0.13
Holding Current 0.15  0.12  0.15  0.08  0.06  0.07
Power Consumption (W) 8  7  9  8  7  9
Valve Type K25JD-W
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7

Label:

katup udara pneumatik,

5/2-way pneumatic solenoid valve,

K25J-WHS poppet valve
