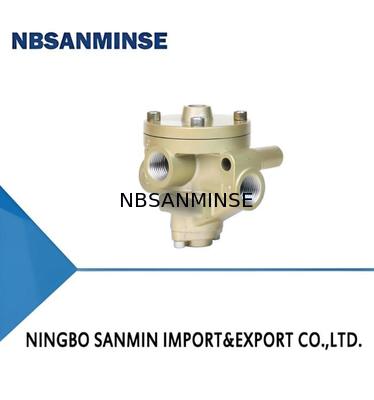

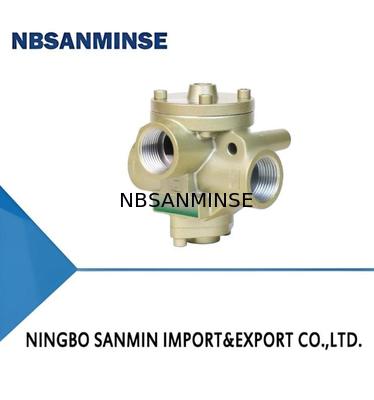

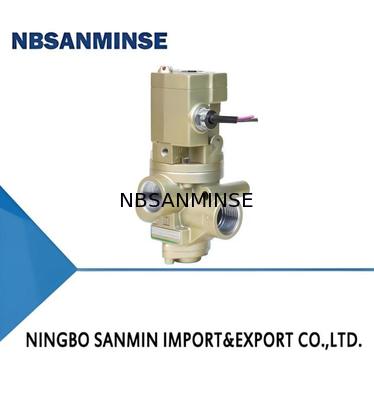

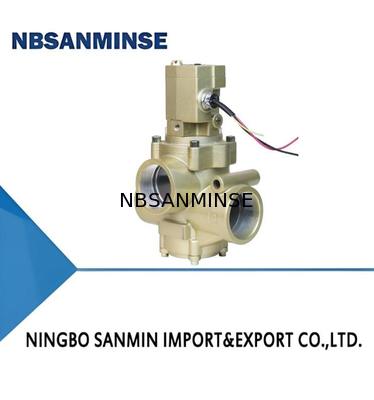

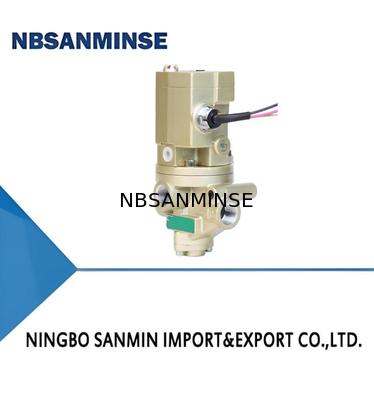

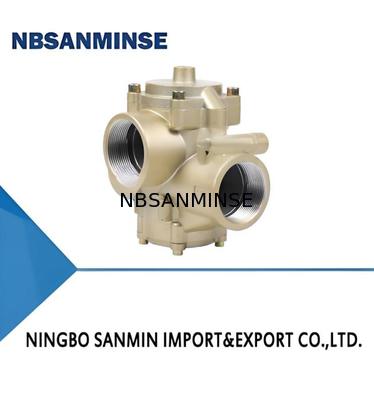

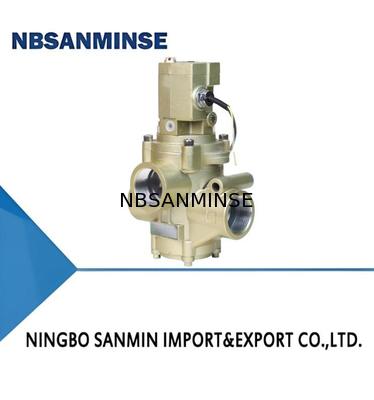

K23J-WHS Series poppet valves 3/2-way

K23J-WHS Series poppet valves 3/2-way
K23J-WHS Series poppet valves 3/2-way K23J-WHS Series poppet valves 3/2-way K23J-WHS Series poppet valves 3/2-way K23J-WHS Series poppet valves 3/2-way K23J-WHS Series poppet valves 3/2-way K23J-WHS Series poppet valves 3/2-way K23J-WHS Series poppet valves 3/2-way

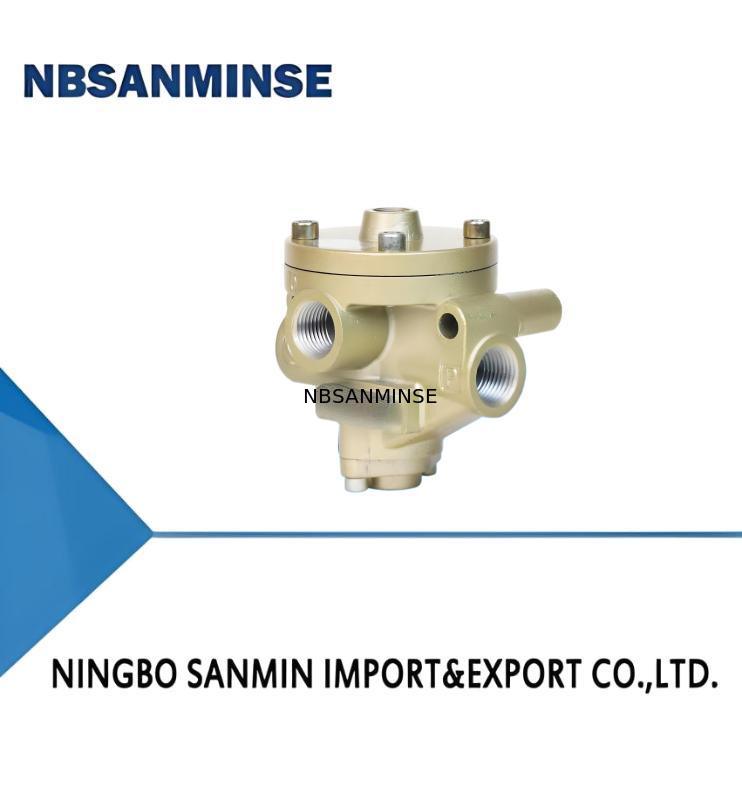

Gambar besar :  K23J-WHS Series poppet valves 3/2-way

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K23J-WHS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K23J-WHS Series poppet valves 3/2-way

Deskripsi
Nilai Tegangan: DC 24V Menahan arus: 0.32
Kekuatan: 7.7(L) Suhu kerja.: -5 - 50(℃)
Tekanan kerja: 0,2 - 0,8(Mpa)
Menyoroti:

3/2-way pneumatic solenoid valve

,

K23J-WHS poppet valve

,

solenoid valve with poppet design

Features:
K23J-W series is a three-position two-way ppe connection cut-off
direction. Reasonable, easy to move and repair, especially
suitablefor harsh working conditions. Separate control and pneu-
matic control
Order Code:
K23J-WHS Series poppet valves 3/2-way 0
① Medium: Air
② Circuit Form: 2/3 Way
③ Valve Body Form: Poppet Type
④ D Single Electric Control with K Pneumatic Control
⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2, 50 G2
⑥ Product Model: W, WHS
⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V
Symbols:
K23J-WHS Series poppet valves 3/2-way 1
K23J-WHS Series poppet valves 3/2-way 2
Type Nominal Dia Threads(Imperial G) A B C D L φG M H
K23J-8W 8  G1/4 180  96  78  73  85  φ8.5 40  38
K23J-10W 10  G3/8 180  96  78  73  85  φ8.5 40  38
K23J-15W 15  G1/2 180  96  78  73  85  φ8.5 40  38
K23J-20W 20  G3/4 195  113  89  82  105  φ8.5 45  52
K23J-25W 25  G1 195  113  89  82  105  φ8.5 45  52
K23J-32W 32  G1-1/4 268  165  121  118  170  φ13 62  75
K23J-40W 40  G1-1/2 268  165  121  118  170  φ13 62  75
K23J-50W 50  G2 268  165  121  118  170  φ13 62  75
K23J-63W 63  G2-1/2 280  214  159.5  155.5  240  φ13.5 60.5  100
K23J-WHS Series poppet valves 3/2-way 3
Valve Type K23JD-W K23JD-W K23JD-W K23JD-W K23JD-W K23JD-W
Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29  0.25  0.27  0.14  0.12  0.13
Holding Current 0.15  0.12  0.15  0.08  0.06  0.07
Power Consumption (W) 8  7  9  8  7  9
Valve Type K23JD-W
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7
Outlook Dimension
Outlook Dimension:

Label:

katup udara pneumatik,

3/2-way pneumatic solenoid valve,

K23J-WHS poppet valve
