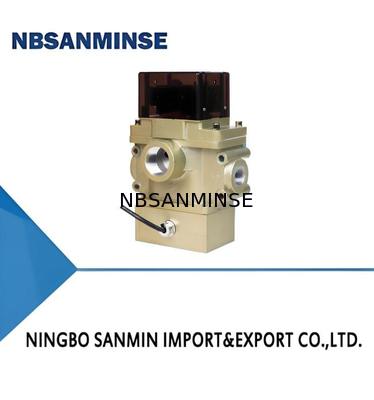

K23JSD-L Series double valves for press machine

K23JSD-L Series double valves for press machine
K23JSD-L Series double valves for press machine

Gambar besar :  K23JSD-L Series double valves for press machine

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K23JSD-L
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K23JSD-L Series double valves for press machine

Deskripsi
Nilai Tegangan: DC 24V Menahan arus: 0.32
Kekuatan: 7.7 Suhu Kerja: -5 - 50（℃）
Tekanan kerja: 0,3 - 0,8（Mpa）
Menyoroti:

Pneumatic solenoid double valves

,

Press machine solenoid valves

,

K23JSD-L series pneumatic valves

Features:
K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three-way solenoid valves with
the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's
aSafety double valves is an exclusive pneumatic element controlling the actions of the brake and cluth of a press
.when the controlling air pressure below the valveitself goes wrong,it makes presssure of the brake and clutch,then
sopping the press quickly to ensure safety ofthe equipment and personal.
Order Code:
K23JSD-L Series double valves for press machine 0
① Medium: Air
② Circuit Form: 2/3 Way
③ Valve Body Form: Poppet Type
④ Dual Valve
⑤ Control Form: Electric Control
⑥ Connection Type: Pipe Connection
⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2
⑧ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V
Symbols:
K23JSD-L Series double valves for press machine 1
K23JSD-L Series double valves for press machine 2

K23JSD-L Series double valves for press machine 3
Outlook Dimension:
Type Nominal Dia A P 0  M N L G H
K23JSD-L15 15  G1/2 G1/2 G3/4 90  155  226  135  41
K23JSD-L20 20  G3/4 G3/4 G1-1/4 105  170  246  149  52
K23JSD-L25 25  G1 G1 G1-1/4 105  170  246  149  52
K23JSD-L32 32  G1-1/4 G1-1/4 G2 127  254  259  212  77
K23JSD-L40 40  G1-1/2 G1-1/2 G2 127  254  259  212  77
Specification:
Parameters Type K23JSD-L15 K23JSD-L20 K23JSD-L25 K23JSD-L32 K23JSD-L40
dia
15  20  25  30  40
port size P G1/2 G3/4 G1 G1-1/4 G1-1/2
A G1/2 G3/4 G1 G1-1/4 G1-1/2
0  G3/4 G1-1/4 G1-1/4 G2 G2
Range of working pressure(Hpa)
0.3-0.8
Working temperatureC)
-5~50
Direction changing Time(sec)
≤0.05 ≤0.07 ≤0.07 ≤0.10 ≤0.10

Effective sectional area Cv(mm²)

 P-A >30 >90 >90 >140 >140
A-0 ≥120 ≥360 ≥360 ≥560 >560
AC voltage:
Valve Type K23JSD-L K23JSD-L K23JSD-L K23JSD-L K23JSD-L K23JSD-L
Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29  0.25  0.27  0.14  0.12  0.13
Holding Current 0.15  0.12  0.15  0.08  0.06  0.07
Power Consumption (W) 8  7  9  8  7  9
DC voltage:
Valve Type K23JSD-L
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7

:voltage
DC voltage
DC voltage
DC voltage
DC voltage
DC voltage

Label:

katup udara pneumatik,

Pneumatic solenoid double valves,

Press machine solenoid valves
