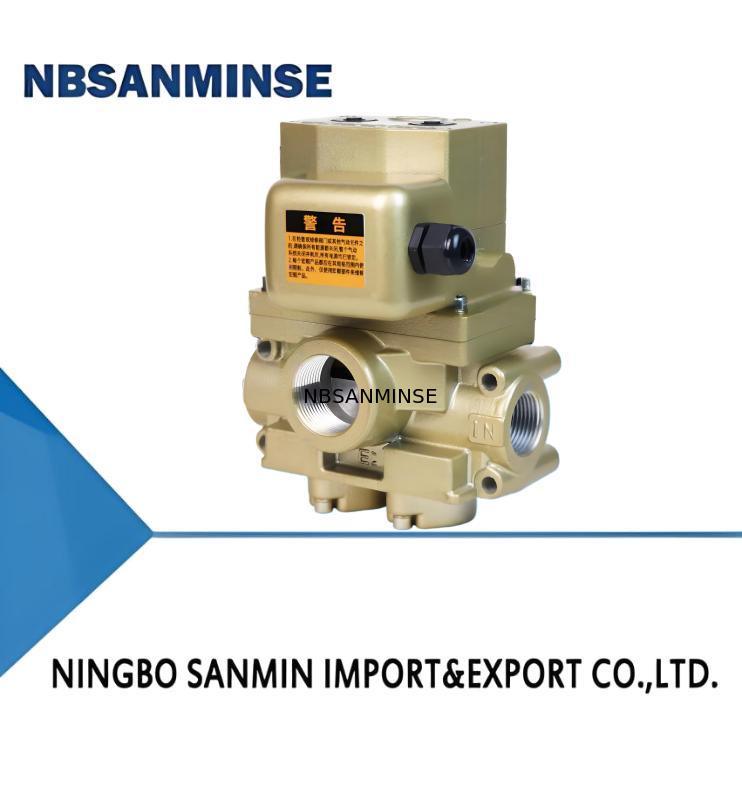

K23JSD-HSCO Series double valves for press machine

K23JSD-HSCO Series double valves for press machine
K23JSD-HSCO Series double valves for press machine

Gambar besar :  K23JSD-HSCO Series double valves for press machine

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: K23JSD-HSCO
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: KOTAK
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 10000 pcs
Kontak

K23JSD-HSCO Series double valves for press machine

Deskripsi
Nilai Tegangan: DC 24V Menahan arus: 0.32
Daya (W): 7.7 Suhu Kerja: 5-40 (℃)
Tekanan kerja: 0,2-0,7(Mpa)
Menyoroti:

double solenoid valve for press machine

,

pneumatic double valve with warranty

,

K23JSD-HSCO series pneumatic solenoid valve

Features:
K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three-way solenoid valves with
the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's
actions.when one of the valve goes wrong as the "OUT"side"s"air pressure is higher than clutch "s"and break-
ar"s”,the press machine will stop runing,It makes the press machine more safe then those that only have one single
solenoid valve.
Order Code:
K23JSD-HSCO Series double valves for press machine 0

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Globe Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Method: Pipe Connection

⑦ Nominal Diameter: 15SC2, 20G1/4, 25G1, 32G1-1/4, 40 G1-1/2

⑧ Product Model: HSV Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:
K23JSD-HSCO Series double valves for press machine 1
K23JSD-HSCO Series double valves for press machine 2
K23JSD-HSCO Series double valves for press machine 3
K23JSD-HSCO Series double valves for press machine 4
K23JSD-HSCO Series double valves for press machine 5
Outlook Dimension:
Type Nominal Diameter IN OUT EX M N L G H F E
K23JSD-L15HSCO 15  G1/2 G1/2 G3/4 80.5  154  183  128  35  130  65
K23JSD-L20HSCO 20  G3/4 G3/4 G3/4 80.5  154  183  128  42  130  65
K23JSD-L20HSCO 20  G3/4 G3/4 G1-1/4 102  165  205  140  52  130  72
K23JSD-L25HSCO 25  G1 G1 G1-1/4 102  165  205  140  52  130  72
K23JSD-L32HSCO 32  G1-1/4 G1-1/4 G2 125  259  295  217  77  128  110
K23JSD-L40HSCO 40  G1-1/2 G1-1/2 G2 125  259  295  217  77  128  110
Specification:
K23JSD-HSCO Series double valves for press machine 6
AC voltage:
Valve Type K23JSD-HSCO K23JSD-HSCO K23JSD-HSCO K23JSD-HSCO K23JSD-HSCO K23JSD-HSCO
Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29  0.25  0.27  0.14  0.12  0.13
Holding Current 0.15  0.12  0.15  0.08  0.06  0.07
Power Consumption (W) 8  7  9  8  7  9
DC voltage:
Valve Type K23JSD-HSCO
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7

Label:

katup udara pneumatik,

double solenoid valve for press machine,

pneumatic double valve with warranty
