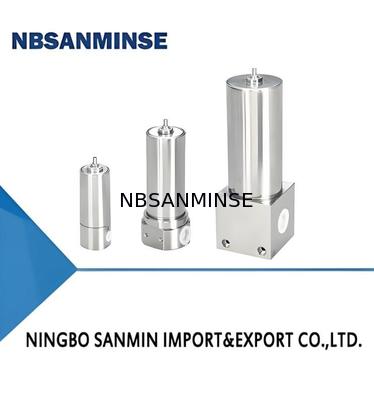

QSLH Series Stainless Steel Filter with 5μm Filtration Precision 40μm Optional and G1/8 to G1 Connection for Compressed Air

Kuantitas min Order :	10 pcs	Harga :	Dapat dinegosiasikan
Kemasan rincian :	Kotak	Waktu pengiriman :	5-30 hari
Syarat-syarat pembayaran :	L/c, t/t	Menyediakan kemampuan :	10000 pcs

Tempat asal:	CINA	Nama merek:	NBSANMINSE
Sertifikasi:	ISO9001	Nomor model:	QSLH-B15NCHW

Informasi Detail

Menyoroti:

5μm Filtration Precision Stainless Steel Filter

40μm Optional Filtration Pneumatic Filter

G1/8 to G1 Connection Air Filter

Deskripsi Produk

QSLH Series Stainless Steel Filter

Product Specifications

Model	QSLH-06	QSLH-08	QSLH-10	QSLH-15	QSLH-20	QSLH-25
Fluid Application	Compressed air
Connection Bore	G1/8	G1/4	G3/8	G1/2	G3/4	G1
Pressure Regulation Structure	Piston Type

Body Material: Stainless Steel SUS316

Cup Material: Stainless Steel SUS316

Filter Element Material: Stainless Steel SUS316

Filtration Precision: 5μm (Standard), 40μm (Optional)

Operating Pressure: QSLHB.0.5: 0.5 - 12kgf/cm², QSLHB.12: 12 - 28kgf/cm²

Maximum Inlet Pressure: 60kgf/cm² (Visual Window: 15kgf/cm²)

Maximum Flow Rate (Vmin)(ANR): 2400 | 2450 | 3030 | B9600/19200

Ambient Temperature: -10-70℃

Filter Cup Capacity: 100cc

Standard Drainage: Semi-automatic (requires draining below 0.5kgf/cm²)

Auxiliary Accessories: Plug

Model Number Breakdown:

QSLH	B	15	N	C	H	W
Series Number	Pressure	Connection Port Diameter	Connection Port Thread	Filtration Precision	Drainage Method	Visual Window
Stainless Steel Filter	Blank: 12 - 28kgf/cm² B: 0.5 - 12kgf/cm²	06: G1/8" 08: G1/4" 10: G3/8" 15: G1/2" 20: G3/4" 25: G1"	Blank: G N: NPT R: Rc	PE Filter Element Blank: 5μm C: 40μm	Blank: Semi-automatic Drainage H: Manual Drainage D: Automatic Drainage	Blank: None
