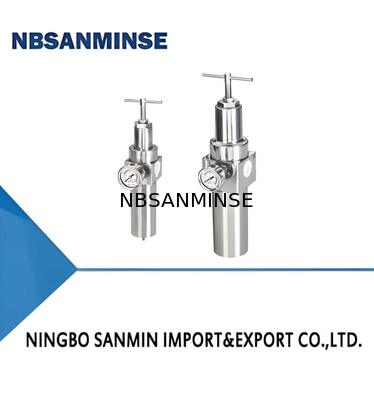

QFRH Series of stainless steel pressure regulating filters

QFRH Series of stainless steel pressure regulating filters
QFRH Series of stainless steel pressure regulating filters
QFRH Series of stainless steel pressure regulating filters QFRH Series of stainless steel pressure regulating filters

Gambar besar :  QFRH Series of stainless steel pressure regulating filters

Detail produk:
Tempat asal: CINA
Nama merek: NBSANMINSE
Sertifikasi: ISO9001
Nomor model: QFRHB15 NCHW
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: Kotak
Waktu pengiriman: 5-30 hari
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 10000 pcs
Kontak

QFRH Series of stainless steel pressure regulating filters

Deskripsi
Menyoroti:

stainless steel pressure regulating filter

,

filter regulator lubricator with warranty

,

QFRH series stainless steel filter

QFRH B 15 N C H W
serial number pressure takeover caliber Pipe mouth screw thread filtration accuracy drainage method Windows
Stainless steel pressure regulating filter Blank: 12-28kgf/cm 08:G1/4" Blank: G PE filter cartridge Blank semi-automatic drainage Blank: None

B:0.5-12kgf/cm2 10:G3/8" N:NPT Blank: 5 μ m H: Manual drainage


15:G1/2" R:Rc C:40um D: Automatic drainage


20:G3/4"





25:G1"




model QFRH-08 QFRH-10 QFRH-15 QFRH-20 QFRH-25
The uses a fluid Compressed air
Connection Bore G1/4 G3/8 G1/2 G3/4 G1
Pressure Regulation Structure Piston Type
Body Material Stainless Steel SUS316
Cup Material Stainless Steel SUS316
Pressure Gauge Material Shell: Stainless Steel SUS304; Thread: Stainless Steel SUS316
Operating Pressure QFRHB:0.5-12kgf/cm²,QFRH:12~28kgf/cm²
Maximum Inlet Pressure 60kgf/cm²
Maximum Flow Rate(Vmin)(ANR) 2200 2500 3800 B8500/17000 B8900/21000
Ambient Temperature -10-70℃
Filter Cup Capacity 100cc 200cc
Standard Drainage Semi-automatic (requires draining below 0.5kgf/cm²)
Auxiliary Accessories Pressure Gauge (0~40kg), Plug
Optional Pressure Gauge (0~40kg), Pressure Gauge (0~60kg)


QFRH Series of stainless steel pressure regulating filters 0
