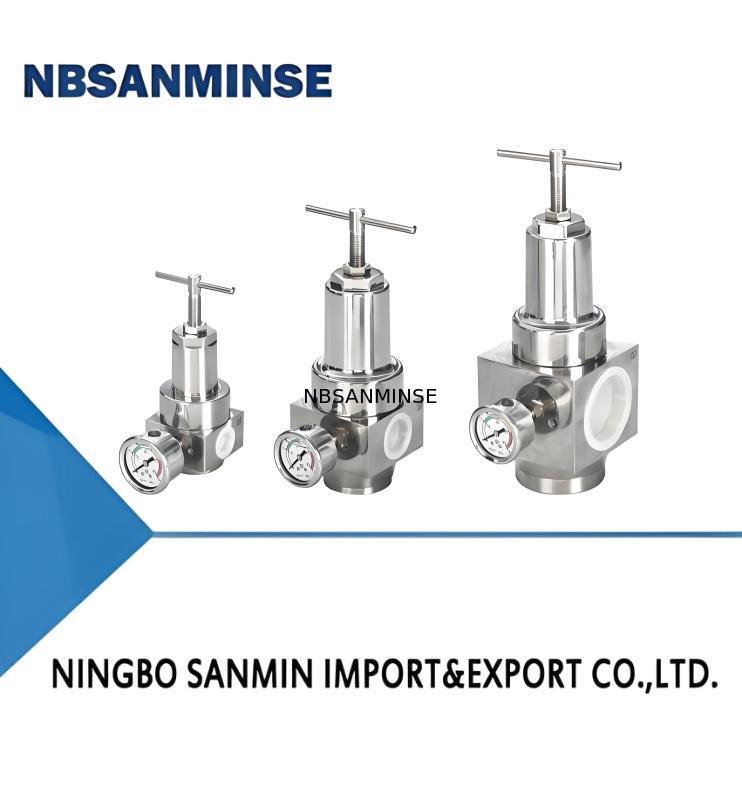

QTYH Series stainless steel pressure reducing valve
QTYH Series stainless steel pressure reducing valve
Hubungi sekarang

QTYH Series stainless steel pressure reducing valve

Kuantitas min Order : 10 pcs Harga : Dapat dinegosiasikan
Kemasan rincian : Kotak Waktu pengiriman : 5-30 hari
Syarat-syarat pembayaran : L/c, t/t Menyediakan kemampuan : 10000 pcs
Tempat asal: CINA Nama merek: NBSANMINSE
Sertifikasi: ISO9001 Nomor model: Qtyhb15n

Deskripsi Produk


model QTYH-08 QTYH-10 QTYH-15 QTYH-20 QTYH-25 QTYH-32 QTYH-40 QTYH-50
Using fluids compressed air
takeover caliber G1/4 G3/8 G1/2 G3/4 G1 G13/8 G11/2 G2
Pressure regulating structure piston-type
body material Stainless steel SUS316
Pressure gauge material Shell made of stainless steel SUS304, teeth made of stainless steel SUS316
Operating pressure QTYHB:0.5-12kgf/cm2, QTYH:12-28kgf/cm2
Maximum intake pressure 60kgf/cm2
ambient temperature -10-70°C
Accessory parts Pressure gauge (0-40kg), plug
optional Pressure gauge (0~40kg), pressure gauge (0~60kg)


QTYH B 15 N
serial number pressure takeover caliber Pipe mouth screw thread
Stainless steel pressure reducing valve Blank: 12-28kgf/cm 08:G1/4;25:G1" Blank: G

B:0.5-12kgf/cm2 10:G3/8;32:G13/8 N:NPT


15:G1/2";40:G11/2 R:Rc


20:G3/4;50:G2


QTYH Series stainless steel pressure reducing valve 0

QTYH Series stainless steel pressure reducing valve 1
