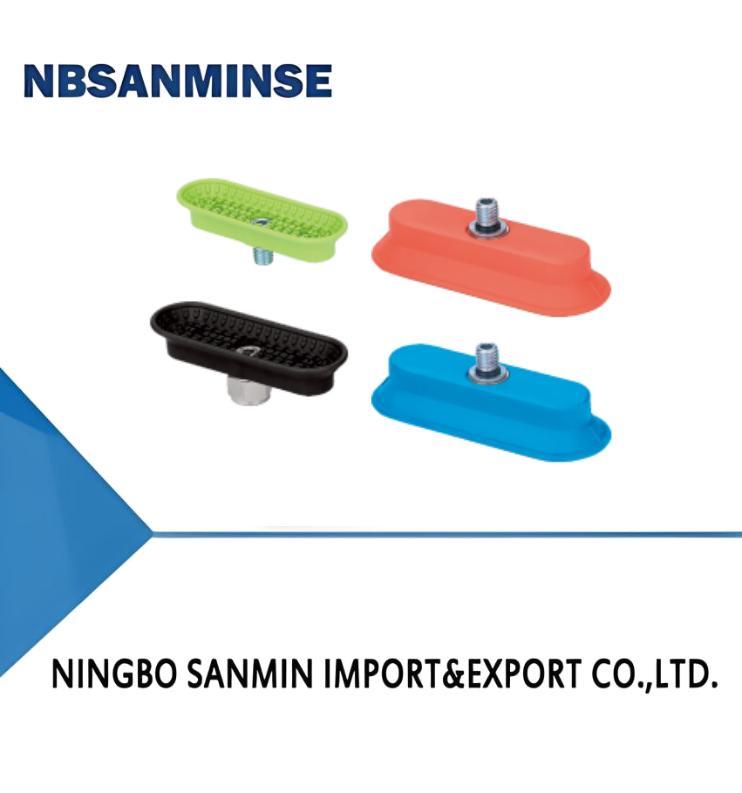

SOF Series Oval Flat Suction Cup Speical for Metal Sheet

Hubungi sekarang

Cangkir Hisap Datar Oval Seri SOF Khusus untuk Lembaran Logam

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Nama merek:	NBSANMINSE
Model Number:	SOF16×50

Informasi Detail
Vertical pull-out force N:	33	Lateral pull-out force N:	24
Lateral pull-out force (Oily surface)N:	12	Inner volume cm³:	2
Min.curve radius of workpiece mm:	8

Deskripsi Produk

Fitur

◇ cangkir pengisapan datar oval

Struktur Struktur Dukungan Pola Area Besar Internal

◇ Berbagai ukuran tersedia

Keuntungan

◇ Menangani benda kerja yang panjang dan sempit

◇ Secara efektif meningkatkan kekuatan gesekan antara cangkir hisap dan benda kerja

◇ Maks. Temp dari bahan HK adalah 250 ℃, dapat digunakan untuk mengambil tinggi

lembaran logam temp

◇ Maks. Temp dari bahan HD adalah 160 ℃, dapat digunakan untuk mengambil tinggi

gelas temp tanpa tanda

◇ Cocok untuk benda kerja dengan ukuran dan bentuk yang berbeda

Aplikasi

◇ Menangani bagian logam sempit dan panjang dalam kecepatan cepat, waktu siklus singkat

◇ Menangani lembaran logam dan pelat aluminium tanpa deformasi

◇ Menangani bagian logam stamping otomotif

Struktur

◇ Cup dan fitting hisap adalah struktur one-piece

SOF 40 × 80 N - G3F

① ② ③ ④

①Seri

②Sen

③Caterial & kekerasan

④Koneksi benang

Sof

16 × 50

40 × 110

N -nbr

Benang wanita G2F-G1/4

M10M-M10 × 1,5 benang pria

20 × B0

50 × 100

NG-NBR

Utas G3F-G3/8Female

M14M-M14 × 1,5 benang pria

23 × 60

60 × 120

HK-Extra High Temprubber

Benang pria G2M-G1/4

Adaptor ra -rektangular

30 × 90

70 × 140

HD HD-High Temp/Mark Free Material

40 × B0

Pilihan

Model

Koneksi benang
G2M

M10m

M14m

G2F

G3f

SOF16 × 50 □-□
SOF20 × 80 □-□
SOF23 × 60 □-□
SOF40 × 80 □-□
SOF30 × 90 □-□
SOF40 × 110 □-□
SOF50 × 100 □-□
SOF60 × 120 □-□
SOF70 × 140 □-□

SOF16 × 50 □ -G2M
SOF20 × 80 □ -G2M
SOF23 × 60 □ -G2M
SOF40 × 80 □ -G2M
5DF30 × 90 □ -G2M
5DF40 × 110 □ -G2M
SDF50 × 100 □ -G2M
5DF60 × 120 □ -G2M
SDF70 × 140 □ -G2M

SDF16 × 50 □ -M10M
5DF20 × 80 □ -M10M
5DF23 × 60 □ -M10M
5DF40 × 80 □ -M10M
5DF30 × 90 □ -M10M
5DF40 × 110 □ -M10M
SOF50 × 100 □ -M10M
5DF60 × 120 □ -M10M
5DF70 × 140 □ -M10M

SDF16 × 50 □ -M14M
5DF20 × 80 □ -M14M
5DF23 × 60 □ -M14M
5DF40 × 80 □ -M14M
5DF30 × 90 □ -M14M
5DF40 × 110 □ -M14M
SOF50 × 100 □ -M14M
5DF60 × 120 □ -M14M
5DF70 × 140 □ -M14M

SOF16 × 50 □ -G2F
SOF20 × 80 □ -G2F
5DF23 × 60 □ -G2F
SOF40 × 80 □ -G2F
5DF30 × 90 □ -G2F
5DF40 × 110 □ -G2F
SOF50 × 100 □ -G2F
5DF60 × 120 □ -G2F
SDF70 × 140 □ -G2F

SOF16 × 50 □ -G3F
SOF20 × 80 □ -G3F
SOF23 × 60 □ -G3F
  SOF40 × 80 □ -G3F
  50F30 × 90 □ -G3F
  5DF40 × 110 □ -G3F
  SOF50 × 100 □ -G3F
  5DF60 × 120 □ -G3F
  S0F70 × 140 □ -G3F

SOF16 × 50 □ -RA
SDF20 × 80 □ -RA
5DF23 × 60 □ -RA
SDF40 × 80 □ -RA
5DF30 × 90 □ -RA
5DF40 × 110 □ -RA
S0F50 × 100 □ -RA
SOF60 × 120 □ -RA
5DF70 × 140 □ -RA

Model

Koneksi thre
G2M

iklan
G2F

G3f

Model
G3f

Koneksi thre
G2M

iklan
G2F

G3f

SOF16 × 50HK- □
SOF20 × BOHK- □
SOF23 × 60HK- □
SOF40 × BOHK- □
SOF30 × 90HK- □
SOF40 × 110HK- □
SOF50 × 100HK- □
SOF60 × 120HK- □
SOF70 × 140HK- □

50F16 × 50HK-G2M
50F20 × 8OHK-G2M
SOF23 × 60HK-G2M
SOF40 × 80HK-G2M
SOF3O × 90HK-G2M
SOF40 × 110HK-G2M
SOF50 × 100HK-G2M
50F60 × 120HK-G2M
SOF70 × 140HK-G2M

50F16 × 50HK-G2F
50F20 × 8OHK-G2F
SOF23 × 60HK-G2F
SOF40 × 80HK-G2F
50F3O × 90HK-G2F
50F40 × 110HK-G2F
50F50 × 100HK-G2F
50F60 × 120HK-G2F
SOF70 × 140HK-G2F

SDF16 × 50HK-G3F
SDF20 × B0HK-G3F
SDF2 × 60HK-G3F
SDF4D × 80HK-G3F
SDF30 × 90HK-G3F
SDF40 × 110HK-G3F
SOF50 × 100HK-G3F
SDF60 × 120HK-G3F
SDF70 × 140HK-G3F

SOF16 × 50HD- □
SOF20 × 80HD- □
SOF23 × 60HD- □
SOF40 × 80HD- □
SOF30 × 90HD- □
SOF40 × 110HD- □
SOF50 × 100HD- □
SOF60 × 120HD- □
SOF70 × 140HD- □

SDF16 × 50HD-G2M
5DF20 × 80HD-G2M
SOF29 × 60HD-G2M
50F4D × B0HD-G2M
SOF30 × 90HD-G2M
SOF4D × 110HD-G2M
SOF50 × 100HD-G2M
SDF60 × 120HD-G2M
SDF70 × 140HD-G2M

SDF16 × 50HD-G2F
SOF2D × B0HD-G2F
SOF2 × 60HD-G2F
SOF4D × 80HD-G2F
SDF30 × 90HD-G2F
SOF40 × 110HD-G2F
SOF50 × 100HD-G2F
SOF60 × 120HD-G2F
SOF70 × 140HD-G2F

5OF16 × 50HD-G3F
50F20 × 80HD-G3F
S0F23 × 60HD-G3F
50F40 × 80HD-G3F
50F30 × 90HD-G3F
50F40 × 110HD-G3F
50F50 × 100HD-G3F
50F60 × 120HD-G3F
50F70 × 140HD-G3F

Teknis parameter

Model

Vertikal
kekuatan tarik
N

Lateral
kekuatan tarik
N

Lateral
kekuatan tarik
(Permukaan cily) n

Batin
volume
am³

Min.Curve Radius
benda kerja
mm

Berat
9

Direkomendasikan
selang dia.
mm

MPQ
PC

SOF16 × 50
SOF20 × 80
SOF23 × 60
SOF30 × 90
SOF40 × 80
SOF40 × 110
SOF50 × 100
SOF60 × 120
SOF70 × 140

33
78
57
125
141
200
217
312
445

2
5
3
10
11
25
20
35
52

8
25
20
30
50
35
75
75
90

17
23

4
4
4
4
6
6
6
6
8

1
1
1
1
1
1
1
1
1

110

100

188

118

181

121

254

170

244

230

Model/ukuran	L	W	H	G	LG	H	5	Y
SOF16 × 50 □ -G2F SOF16 × 50 □ -G3F	5050	1616	19.5 19.5	G1/4 G3/8	1111	14	17	3
SOF16 × 50 □ -G2F SOF16 × 50 □ -G3F	5050	1616	19.5 19.5	G1/4 G3/8	1111	14	22	3
SOF16 × 50 □ -RA	50	16	19.5	31.8 × 31.8	4.7	18.7	-	3
SOF20 × 80 □ -G2F	84	24	15.5	G1/4	11	14	17	5
SOF20 × 80 □ -G3F	84	24	15.5	G3/8	11	14	22	5
SOF20 × 80 □ -RA	84	24	15.5	31.8 × 31.8	4.7	18.7	-	5
SOF23 × 60 □ -G2F	61.5	22.5	12	G1/4	11	14	17	3
SOF23 × 60 □ -G3F	61.5	22.5	12	G3/8	11	14	22	3
SOF23 × 60 □ -RA	61.5	22.5	12	31.8 × 31.8	4.7	18.7	-	3
SOF30 × 90 □ -G2F	93	33	16	G1/4	11	14	17	5
SOF30 × 90 □ -G3F	93	33	16	G3/8	11	14	22	5
SOF30 × 90 □ -RA	93	33	16	31.8 × 31.8	4.7	18.7	-	5
SOF40 × 80 □ -G2F	82	39	14	G1/4	11	14	17	4
SOF40 × 80 □ -G3F	82	39	14	G3/8	11	14	22	4
SOF40 × 80 □ -RA	82	39	14	31.8 × 31.8	4.7	18.7	-	4
SOF40 × 110 □ -G2F	113	43	21.5	G1/4	11	14	17	6
SOF40 × 110 □ -G3F	113	43	21.5	G3/8	11	14	22	6
SOF40 × 110 □ -RA	113	43	21.5	31.8 × 31.8	4.7	18.7	-	6
SOF50 × 100 □ -G2F	102	49	16	G1/4	11	14	17	5
SOF50 × 100 □ -G3F	102	49	16	G3/8	11	14	22	5
SOF50 × 100 □ -RA	102	49	16	31.8 × 31.8	4.7	18.7	-	5
SOF60 × 120 □ -G2F	123	58	18	G1/4	11	14	17	6
SOF60 × 120 □ -G3F SOF60 × 120 □ -RA	123	58	18	G3/8	11	14	22	6
SOF60 × 120 □ -G3F SOF60 × 120 □ -RA	123	58	18	31.8 × 31.8	4.7	18.7	-	6
SOF70 × 140 □ -G2F SOF70 × 140 □ -G3F	141	67.5 67.5 67.5	19	G1/4	11	14	17	7
SOF70 × 140 □ -G2F SOF70 × 140 □ -G3F	141		19	G3/8	11	14	22	7
SOF70 × 140 □ -RA	141		19	31.8 × 31.8	4.7	18.7	-	7

Model/ukuran	L	W	H	G	LG	H	5	Y
SOF16 × 50 □ -G2M SOF16 × 50 □ -M10M	5050	1616	19.5 19.5	G1/4 M10 × 1.5	9	10.5	5	3
SOF16 × 50 □ -G2M SOF16 × 50 □ -M10M	5050	1616	19.5 19.5	G1/4 M10 × 1.5	12	13.5	5	3
SOF16 × 50 □ -M14M	50	16	19.5	M14 × 1.5	12	13.5	5	3
SOF20 × 80 □ -G2M	84	24	15.5	G1/4	9	10.5	5	5
SOF20 × 80 □ -M10M	84	24	15.5	M10 × 1.5	12	13.5	5	5
SOF20 × 80 □ -M14M	84	24	15.5	M14 × 1.5	12	13.5	5	5
SOF23 × 60 □ -G2M	61.5	22.5	12	G1/4	9	10.5	5	3
SOF23 × 60 □ -M10M	61.5	22.5	12	M10 × 1.5	12	13.5	5	3
SOF23 × 60 □ -M14M	61.5	22.5	12	M14 × 1.5	12	13.5	5	3
SOF30 × 90 □ -G2M	93	33	16	G1/4	9	10.5	5	5
SOF30 × 90 □ -M10M	93	33	16	M10 × 1.5	12	13.5	5	5
SOF30 × 90 □ -M14M	93	33	16	M14 × 1.5	12	13.5	5	5
SOF40 × 80 □ -G2M	82	39	14	G1/4	9	10.5	5	4
SOF40 × 80 □ -M10M	82	39	14	M10 × 1.5	12	13.5	5	4
SOF40 × 80 □ -M14M	82	39	14	M14 × 1.5	12	13.5	5	4
SOF40 × 110 □ -G2M	113	43	21.5	G1/4	9	11	5	6
SOF40 × 110 □ -M10M	113	43	21.5	M10 × 1.5	12	13.5	5	6
SOF40 × 110 □ -M14M	113	43	21.5	M14 × 1.5	12	13.5	5	6
SOF50 × 100 □ -G2M	102	49	16	G1/4	9	11	5	5
SOF50 × 100 □ -M10M	102	49	16	M10 × 1.5	12	13.5	5	5
SOF50 × 100 □ -M14M	102	49	16	M14 × 1.5	12	13.5	5	5
SOF60 × 120 □ -G2M	123	58	18	G1/4	9	11	5	6
SOF60 × 120 □ -M10M	123	58	18	M10 × 1.5	12	13.5	5	6
SOF60 × 120 □ -M14M	123	58	18	M14 × 1.5	12	13.5	5	6
SOF70 × 140 □ -G2M SOF70 × 140 □ -M10M	141	67.5	19	G1/4	9	11	5	7
SOF70 × 140 □ -G2M SOF70 × 140 □ -M10M	141	67.5	19	M10 × 1.5	12	13.5	5	7
SOF70 × 140 □ -M14M	141	67.5	19	M14 × 1.5	12	13.5	5	7
