VRFU Tubular Throttle Katup Kontrol Tekanan Hidrolik Baja Karbon
Kontak Person : Ina Chen
Nomor telepon : 0086-15168536055
Ada apa : +8615168536055
| Kuantitas min Order : | 1 buah | Kemasan rincian : | Kotak |
|---|---|---|---|
| Waktu pengiriman : | 5-30 hari kerja | Syarat-syarat pembayaran : | Western Union, T/T, L/C, , D/P PayPal |
| Menyediakan kemampuan : | 10000000 |
| Tempat asal: | Cina | Nama merek: | NBSANMINSE |
|---|---|---|---|
| Sertifikasi: | ISO | Nomor model: | RD/RV/RZ |
|
Informasi Detail |
|||
| Bahan: | baja karbon | Tekanan: | 31.5MPA（315Bar） |
|---|---|---|---|
| Ukuran Pelabuhan: | M12X1.5,M18X1.5,M16X1.5,M22X1.5,M26X1.5,M30X2,M36X2,M45X2,M52X2,M24X1.5,G1/8,1/4,3/8,1/2,3/ 4,1,11/4 | Suhu: | -20-+80C |
| Cahaya Tinggi: | Katup Bola Hidraulik 31.5MPA Tekanan Tinggi,Katup Bola Hidrolik Konektor Cepat,Katup Periksa Hidraulik 31.5MPA |
||
Deskripsi Produk

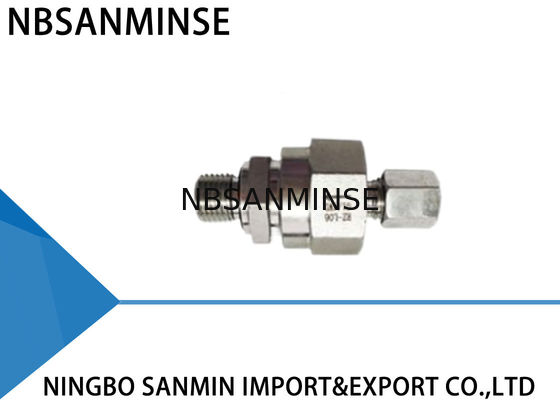

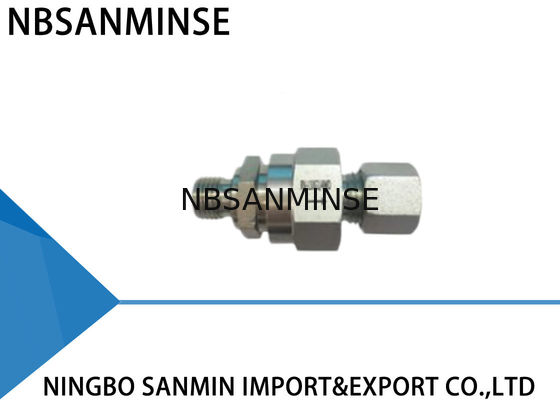

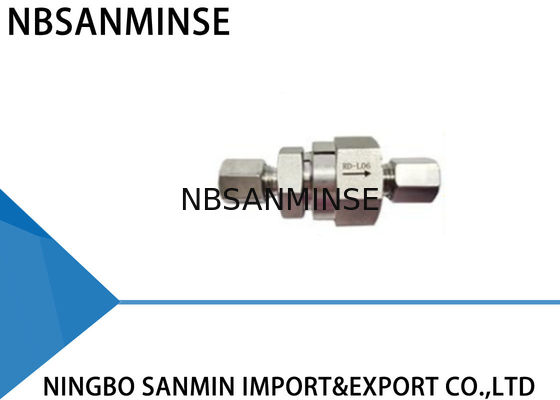

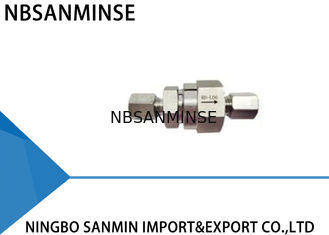

RD/RV/RZ Series Check Valve Mini Valve Katup Konektor Cepat Katup Tekanan Tinggi Hidrolik
| RD | Benang | DN(mm) | L(mnt) | PN (batang) |
| RD-L06 | M12X1.5 | 06 | 10 | 315 |
| RD-L08 | M18X1.5 | 08 | 10 | |
| RD-L10 | M16X1.5 | 10 | 15 | |
| RD-L12 | M18X1.5 | 12 | 20 | |
| RD-L15 | M22X1.5 | 15 | 45 | |
| RD-L18 | M26X1.5 | 18 | 70 | 250 |
| RD-L22 | M30X2 | 22 | 110 | |
| RD-L28 | M36X2 | 28 | 160 | |
| RD-L35 | M45X2 | 35 | 200 | |
| RD-L42 | M52X2 | 42 | 300 | |
| RD-S06 | M12X1.5 | 06 | 10 | 400 |
| RD-S08 | M18X1.5 | 08 | 10 | |
| RD-S10 | M16X1.5 | 10 | 15 | |
| RD-S12 | M18X1.5 | 12 | 20 | |
| RD-S14 | M22X1.5 | 14 | 45 | 315 |
| RD-S16 | M24X1.5 | 16 | 70 | |
| RD-S20 | M30X2 | 20 | 110 | 250 |
| RD-S25 | M36X2 | 25 | 160 | |
| RD-S30 | M42X2 | 30 | 200 | |
| RD-S38 | M52X2 | 38 | 300 | |
| RV-L06-G1/8 | G1/8 | 06 | 10 | 315 |
| RV-L08-G1/4 | G1/4 | 08 | 10 | |
| RV-L10-G1/4 | G1/8 | 10 | 15 | |
| RV-L12-G3/8 | G1/4 | 12 | 20 | |
| RV-L15-G1/2 | G1/4 | 15 | 45 | |
| RV-L18-G1/2 | G1/2 | 18 | 70 | 250 |
| RV-L22-G3/4 | G3/4 | 22 | 110 | |
| RV-L28-G1 | G1 | 28 | 160 | |
| RV-L35-G1 1/4 | G1 1/4 | 35 | 200 | |
| RV-L42-G1 1/2 | G1 1/2 | 42 | 300 | |
| RV-S06-G1 1/4 | G1 1/4 | 06 | 10 | 400 |
| RV-S08-G1 1/4 | G1 1/4 | 08 | 10 | |
| RV-S10-G3/8 | G3/8 | 10 | 15 | |
| RV-S12 G3/8 | G3/8 | 12 | 20 | |
| RV-S14-G1/2 | G1/2 | 14 | 45 | 315 |
| RV-S16-G1/2 | G1/2 | 16 | 70 | |
| RV-520-G3/4 | G3/4 | 20 | 110 | 250 |
| RV-S25-G1 | G1 | 25 | 160 | |
| RV- S30-G1 1/4 | G1 1/4 | 30 | 200 | |
| RV-S38-G1 1/2 | G1 1/2 | 38 | 300 | |
| RZ-L06-G1/8 | M12X1.5 | 06 | 10 | 315 |
| RZ-L08-G1/4 | M18X1.5 | 08 | 10 | |
| RZ-L10-G1/4 | M16X1.5 | 10 | 15 | |
| RZ-L12-G3/8 | M18X1.5 | 12 | 20 | |
| RZ-L15-G1/2 | M22X1.5 | 15 | 45 | |
| RZ-L18-G1/2 | M26X1.5 | 18 | 70 | 250 |
| RZ-L22-G3/4 | M30X2 | 22 | 110 | |
| RZ-L28-G1 | M36X2 | 28 | 160 | |
| RZ-L35-G1 1/4 | M45X2 | 35 | 200 | |
| RZ-L42-G1 1/2 | M52X2 | 42 | 300 | |
| RZ-S06-G1/4 | M12X1.5 | 10 | 10 | 400 |
| RZ-S08-G1/4 | M18X1.5 | 10 | 10 | |
| RZ-S10-G1/4 | M16X1.5 | 15 | 15 | |
| RZ-S12-G3/8 | M18X1.5 | 20 | 20 | |
| RZ-S14-G1/2 | M22X1.5 | 45 | 45 | 315 |
| RZ-S16-G1/2 | M24X1.5 | 70 | 70 | |
| RZ-S20-G3/4 | M30X2 | 110 | 110 | 250 |
| RZ -S25-G1 | M36X2 | 160 | 160 | |
| RZ-S30-G1 1/4 | M42X2 | 200 | 200 | |
| RZ-S38-G1 1/2 | M52X2 | 300 | 300 |
