Tembaga dalam dan luar kabel Kuningan Fitting Hubungkan dengan Pipa Untuk Air Minyak Udara
Kontak Person : Ina Chen
Nomor telepon : 0086-15168536055
Ada apa : +8615168536055
| Tempat asal: | Cina | Nama merek: | NBSANMINSE |
|---|---|---|---|
| Nomor model: | FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A |
|
Informasi Detail |
|||
| Kode: | FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A | Ukuran （mm）: | L 300 350 440 600 670 A L1 145 172 200 350 420 BD 115 (105) D1 85 (75) D2 65 (55) |
|---|---|---|---|
| Nama Bagian: | katup menyegel kaca kaca gasket | Bahan: | Q235, grafit bushing baja forged low alkali borosilikat tinggi |
| Tekanan nominal: | 2.5 （4.0） MPa | Tekanan Uji Kekuatan: | 4.0 （6.4） MPA |
| Tekanan uji segel: | 2.5 （4.0） MPa | Suhu Operasi: | ≤225 ℃ |
| Media kerja: | air, uap, minyak | ||
Deskripsi Produk

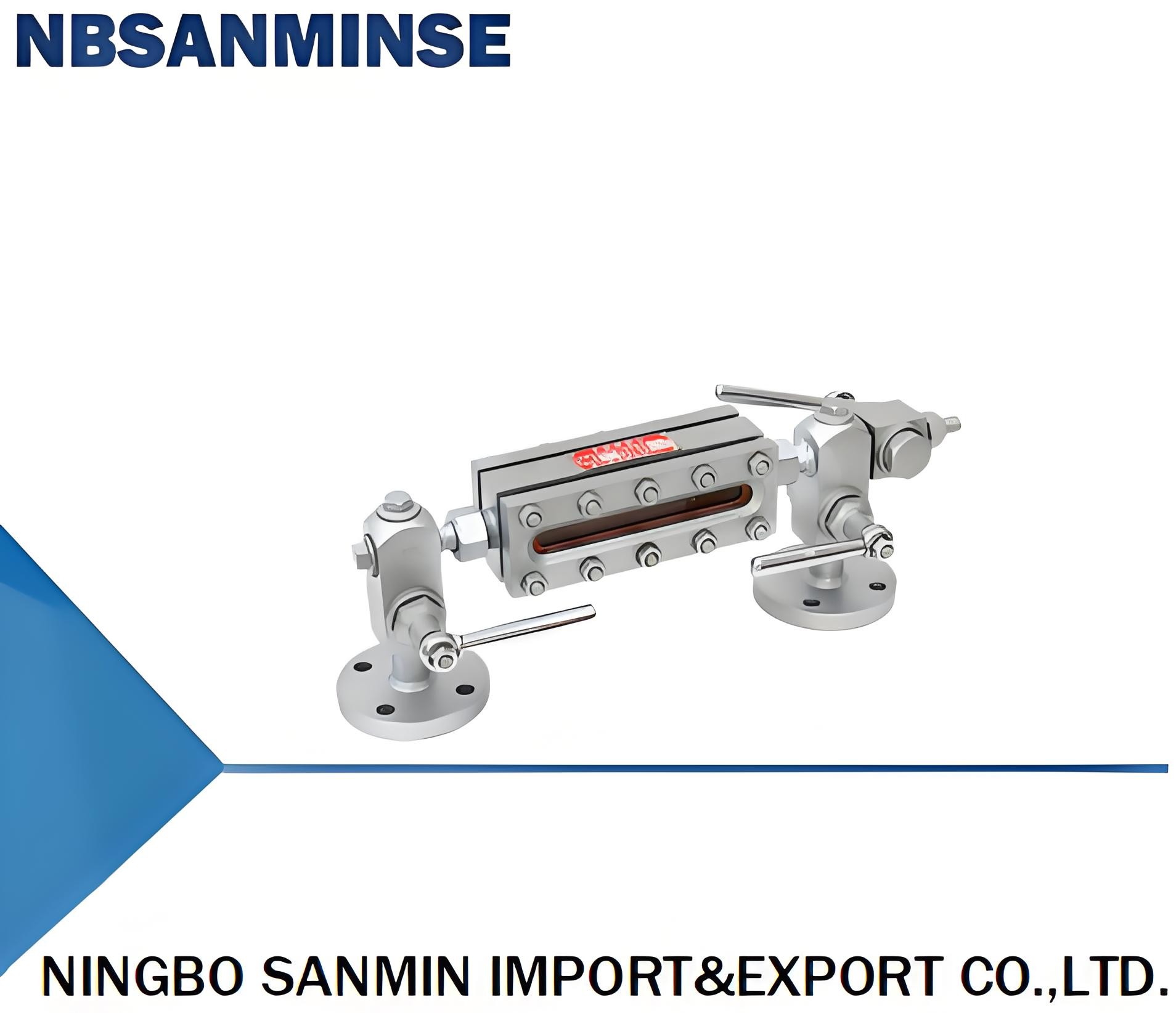

Hot spot of 105 steel flat plate level gauge: Advantages of flat plate level gauge: professional manufacturer | suitable for high temperature | good quality. Flat level gauges are suitable for various complex measurements, such as small dielectric constant media, large temperature and pressure changes, corrosive working conditions, media such as fly ash, and volatile corrosive liquid media Order now!
| code | size(mm) | Part name | material | ||||
| L | L1 | D | D1 | D2 | |||
| FL-105-300 | 300 | 145 | 115(105) | 85(75) | 65(55) | ||
| FL-105-350 | 350 | 172 | |||||
| FL-105-440 | 440 | 200 | valve body | Q235, forged steel | |||
| FL-105-600 | 600 | 350 | Sealing | bushing | |||
| FL-105-670 | 670 | 420 | Glass gasket | graphite | |||
| FL-105-A | A | B | glass | Low alkali high borosilicate | |||
| Nominal pressure | 2.5(4.0)Mpa | ||||||
| strength test pressure | 4.0(6.4)Mpa | ||||||
| Seal test pressure | 2.5(4.0)Mpa | ||||||
| operation temperature | ≤225℃ | ||||||
| Working medium | Water, steam, oil | ||||||
