| Tempat asal: | Cina | Nama merek: | NBSANMINSE |
|---|---|---|---|
| Nomor model: | FLD-109-300 FLD-109-350 FLD-109-440 FLD-109-A |
|
Informasi Detail |
|||
| Kode: | FLD-109-300 FLD-109-350 FLD-109-440 FLD-109-A | Ukuran （mm）: | L 300 350 440 A L1 145 172 200 BD 115 (105) D1 85 (75) D2 65 (55) Z-φd 4-φ14 |
|---|---|---|---|
| Nama Bagian: | katup menyegel kaca kaca gasket | Bahan: | Q235, grafit bushing baja forged low alkali borosilikat tinggi |
| Tekanan nominal: | 2.5 （4.0） MPa | Tekanan Uji Kekuatan: | 4.0 （6.4） MPA |
| Tekanan uji segel: | 2.5 （4.0） MPa | Suhu Operasi: | ≤225 ℃ |
| Media kerja: | air, uap, minyak | ||
Deskripsi Produk

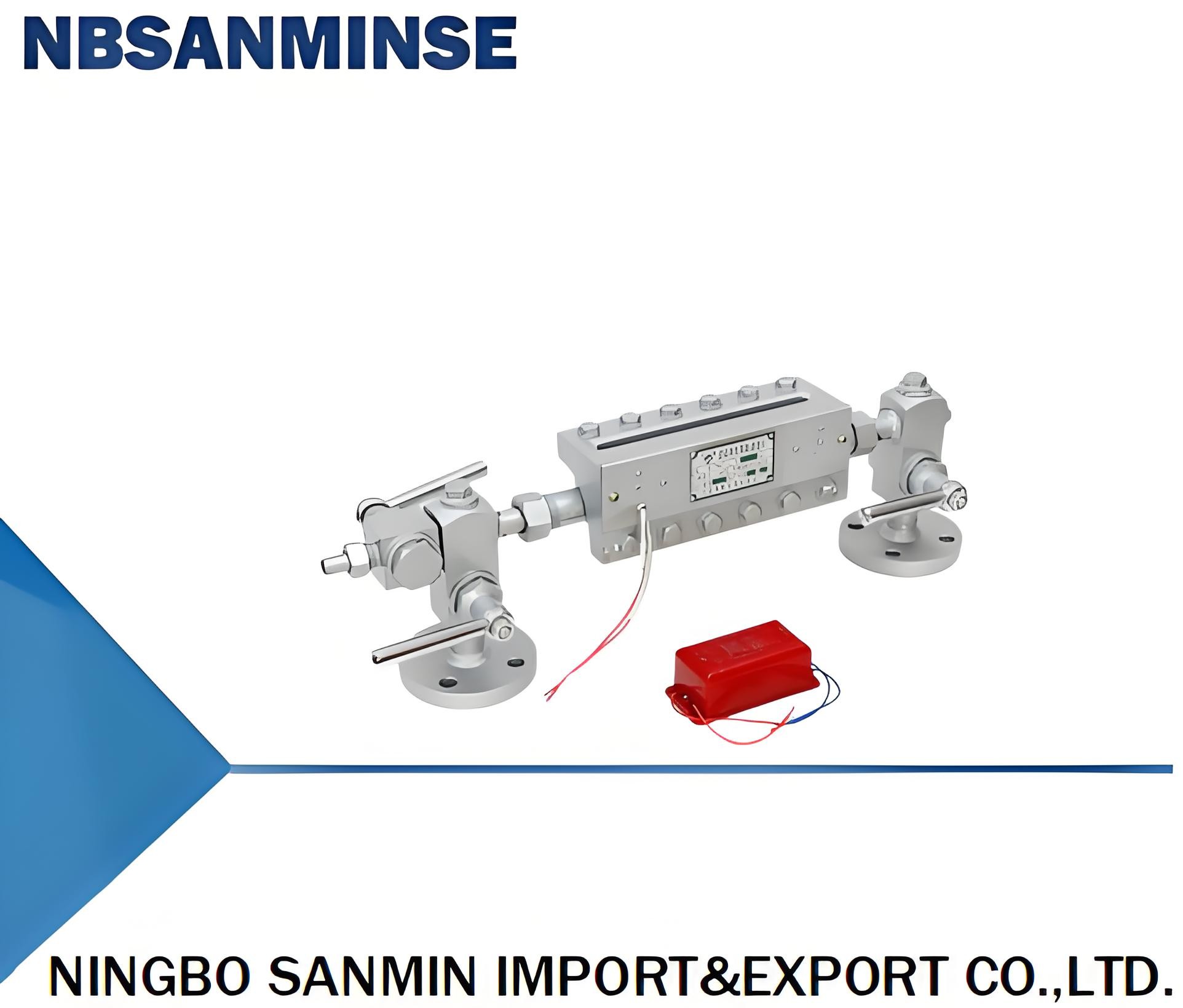

This water level gauge is suitable for steam boilers or reservoirs with a working temperature of t ≤ 220 ℃, and is used to indicate the liquid level through two colors displayed on the glass plate: red (with water) and green (without water).
| code | size(mm) | Part name | material | |||||
| L | L1 | D | D1 | D2 | Z-φd | |||
| FLD-109-300 | 300 | 145 | 115(105) | 85(75) | 65(55) | 4-φ14 | valve body | Q235,forged steel |
| FLD-109-350 | 350 | 172 | Sealing | bushing | ||||
| FLD-109-440 | 440 | 200 | Glass gasket | graphite | ||||
| FLD-109-A | A | B | glass | Low alkali high borosilicate | ||||
| Nominal pressure | 2.5(4.0)Mpa | |||||||
| strength test pressure | 4.0(6.4)Mpa | |||||||
| Seal test pressure | 2.5(4.0)Mpa | |||||||
| operation temperature | ≤225℃ | |||||||
| Working medium | Water, steam, oil | |||||||
